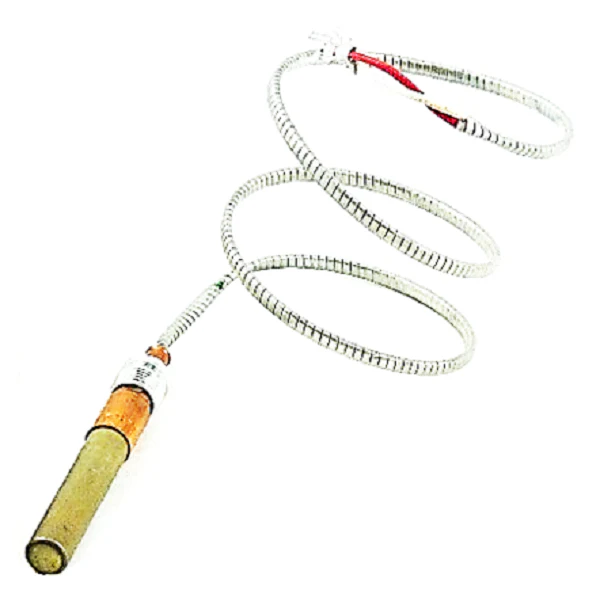

Resideo Q313A1014 Thermopile
The Resideo Q313A1014 Thermopile is a heavy-duty 750mv millivolt generator engineered for high-demand gas-fired heating applications, including self-powered furnaces and gas fireplaces. This 2-lead shielded pilot component utilizes a series-connected thermocouple array to convert thermal energy from the pilot flame into a consistent electrical output, reaching open circuit voltage levels between 600mV and 750mV. Designed for professional integration with Q314 and Q324 pilot burners, the Q313A1014 features a 23-inch lead length with spade terminals, providing reliable power to millivolt gas control systems without the need for an external power source. With a rated resistance of 2.88 ohms and the ability to withstand hot junction temperatures up to 1400°F (760°C), this pilot burner thermopile ensures stable system operation and maximum millivolt circuit continuity in rigorous commercial and residential environments.
Key Benefits- Self-Powered Reliability: Generates sufficient 750mV output to operate automatic gas valves independently of the electrical grid.
- Enhanced Durability: Metal-shielded 23-inch leads protect wiring from high-temperature fatigue and mechanical wear.
- Standardized Compatibility: Equipped with universal spade terminals for seamless connection to most major millivolt gas control brands.
- Optimized Heat Resistance: Precision-engineered for hot junction ratings of 1400°F to ensure performance during continuous pilot operation.
Is the Q313A1014 compatible with standard millivolt gas fireplaces?
Yes, this 750mv thermopile is a standard replacement for most gas fireplaces and domestic heating equipment utilizing millivolt pilot systems.
What is the difference between this and a standard thermocouple?
A thermocouple typically outputs 30mV to hold a safety valve, while this thermopile generator produces 750mV to power the entire gas control circuit.
Can I use this to replace a thermopile with a longer lead?
As long as the 23-inch length reaches your control valve, the electrical specifications are consistent across the Q313A series; however, always verify lead length requirements for your specific cabinet dimensions.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
