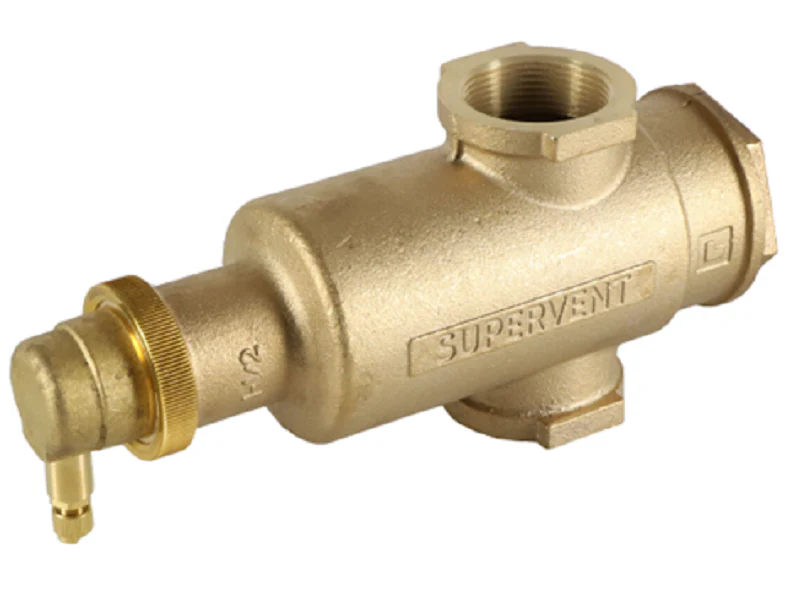

Resideo PV150 Power Vent
The Resideo PV150 is a high-performance 1.5" NPT SuperVent designed to provide efficient air elimination in residential and commercial closed-loop hydronic or chilled water systems. Engineered with a rugged bronze body, this hydronic air separator utilizes a patented stainless steel concentrator to effectively purge micro-bubbles and air pockets without the need for manual bleeding. By maintaining a 50 Cv capacity and managing operating pressures up to 125 psi, the PV150 ensures optimal flow velocity while protecting circulators and other system components from air-related damage. The Resideo PV150 Power Vent features a specialized no-clog vent assembly that is resistant to dirt and debris, significantly reducing the risk of fouling and technical callbacks. Its unique 360-degree adjustable collar ring allows for total installation flexibility, making it a reliable solution for contractors looking to optimize HVAC system efficiency and prevent gurgling noises in pipe runs.
Key Benefits
- High-Efficiency Air Removal: The SuperVent technology captures micro-bubbles, preventing corrosion and improving heat transfer efficiency.
- Debris-Resistant Design: Built-in debris baffle and a no-clog vent assembly protect the unit from fouling in dirty hydronic environments.
- Flexible Installation: Features a 360-degree adjustable collar and a 1/2" NPT bottom connection for simplified expansion tank mounting.
- Robust Construction: Heavy-duty bronze body and stainless steel concentrator withstand maximum operating temperatures up to 240°F.
Common Questions
Where is the best location to install the Resideo PV150?
For peak performance, install the unit in a horizontal line at the point of lowest air solubility—typically on the supply side after the boiler or at the suction side of the circulator.
Does the PV150 require straight pipe runs for accurate operation?
Unlike some air scoops, the Resideo PV150 does not require a minimum straight pipe run upstream or downstream, allowing for compact mechanical room layouts.
Can this air eliminator be used in chilled water systems?
Yes, the PV150 is rated for both hydronic heating and chilled water systems, provided the fluid remains within the operating temperature and pressure limits.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
