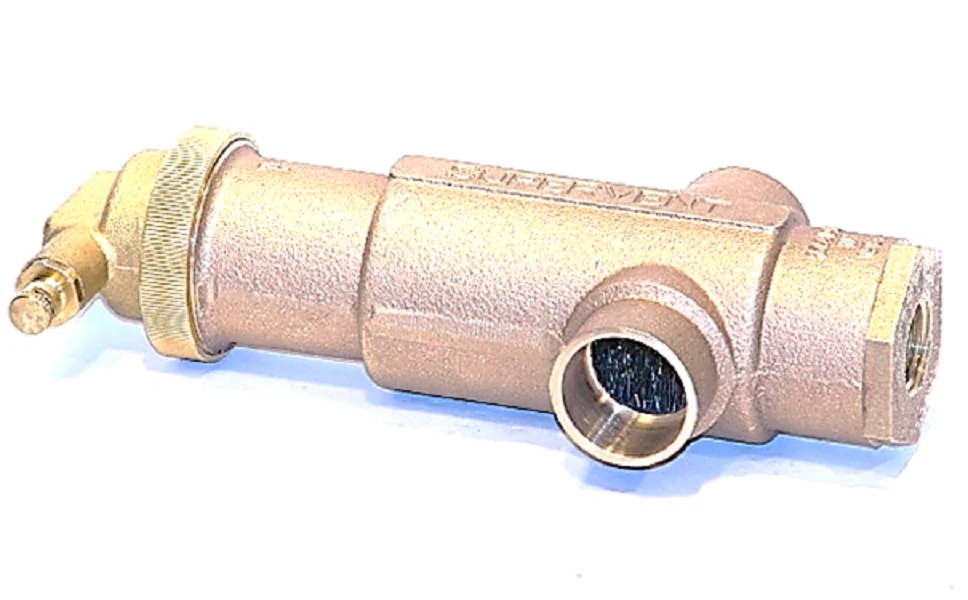

Resideo PV100S Eliminator
The Resideo PV100S Eliminator is a high-performance 1" sweat air eliminator designed for residential and commercial closed-loop hydronic heating or chilled water systems. Engineered with a rugged bronze body, this microbubble air separator utilizes a stainless steel concentrator to break apart and purge entrained air pockets. By removing air effectively, it prevents the gurgling noises often associated with residential heating systems and significantly reduces potential hydronic system corrosion and circulator damage. This unit is rated for a maximum operating pressure of 125 psi and temperatures up to 240°F, ensuring reliable performance in demanding boiler applications.
For the service technician, the Resideo SuperVent simplifies installation and maintenance through its 360-degree adjustable collar ring, allowing for flexible positioning in tight mechanical rooms. The integrated debris baffle prevents dirt fouling of the no-clog vent assembly, which minimizes common callbacks related to leaking air vents. Its 22 Cv capacity supports efficient flow for 1-inch pipe sizes, making the Honeywell PV100S a standard choice for contractors looking to optimize system efficiency and provide a "set it and forget it" solution for air management.
Key Benefits for Your Hydronic System- Enhanced Efficiency: Minimizes air-related heat transfer loss and ensures quiet operation.
- No-Clog Vent Assembly: Protects the internal float from debris, preventing common vent failures and leaks.
- Installation Flexibility: The 360-degree adjustable collar ring facilitates easy alignment with system piping.
- Rugged Construction: Durable bronze housing and stainless steel internal concentrator stand up to continuous service.
- Standard Compatibility: Replaces common competitor models including the Watts AS-MB-S-1 and Taco 49-100C-2.
Where is the best location to install a Resideo PV100S?
For maximum effectiveness, install the unit on the supply side of the boiler where water temperature is highest, as air is released more easily from hot water. It should ideally be placed at the point of no pressure change, typically near the expansion tank connection.
Can the PV100S be used in chilled water systems?
Yes, the Resideo PV100S is suitable for closed-loop chilled water applications as well as heating systems, provided the media is non-potable and falls within the temperature range of 0°F to 240°F.
How does the microbubble concentrator differ from standard air vents?
Unlike a basic vent that only captures large air pockets, the stainless steel concentrator inside the SuperVent has three times the impact area of competing products, allowing it to remove microbubbles that would otherwise stay entrained in the system flow.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
