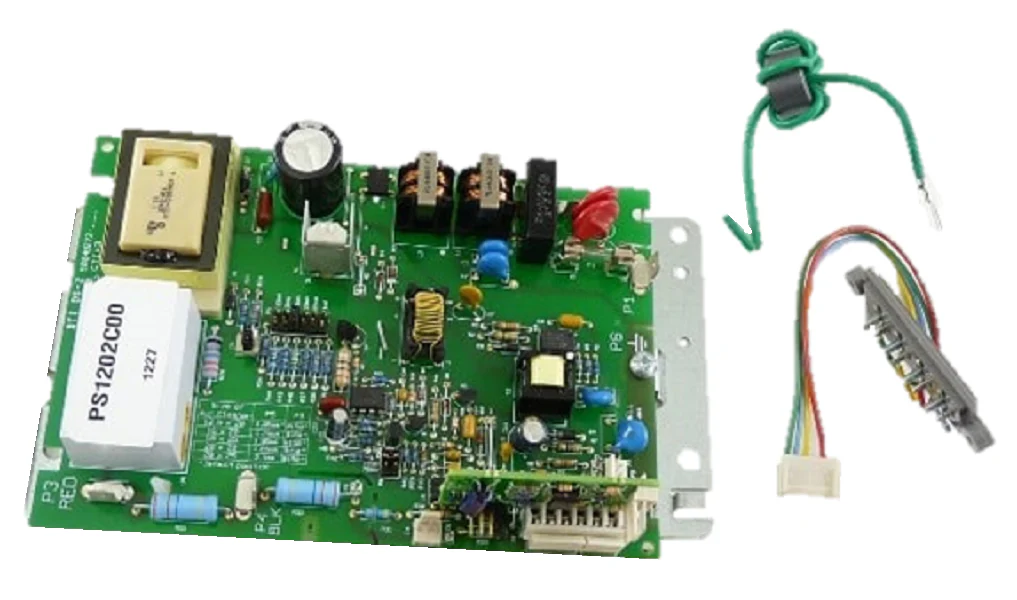

Resideo PS1202C00 Power Supply Box
The Resideo PS1202C00 Power Supply Box is a critical OEM replacement component engineered for Honeywell F52 series and F50F/F58F electronic air cleaners. Operating on a 120V AC input (102-132V range), this unit provides a regulated voltage output to maintain ionic field efficiency. Built on a rugged metal chassis, the PS1202C00 features an integrated driver board for LED indicators and is specifically designed to interface with W8600E Solid State Performance Indicators (SSPI). For versatile field application, the board includes a selectable jumper (P5) to adjust ionizer current between 1.6mA and 2.1mA, accommodating both single and dual cell configurations in 16x25, 20x20, and 20x25 air cleaner housings. This drop-in replacement ensures the high-voltage performance remains within factory specifications for optimal filtration and ozone control.
Key Benefits for HVAC Professionals:
- Broad Compatibility: Directly replaces power supplies in F52 series and legacy F50F/F58F units equipped with W8600E SSPI.
- Adjustable Ionizer Output: Features a selectable P5 jumper to configure current for 12.5x20 or 20x25 return grill and duct-mounted cells.
- Enhanced Circuit Protection: Includes short-circuit and over-voltage protection to prevent board failure during cell arcing or power surges.
- Internal LED Driver: Integrated circuitry supports local performance monitoring via established indicator lamps.
- Structural Integrity: The heavy-duty metal chassis provides superior heat dissipation and simplified mounting for technical retrofits.
Common Technical Questions:
Can this be used on 240V systems?
No, this model is rated for 120 Vac. For 240V configurations, a step-down transformer like the 203365A kit is required to maintain proper input voltage.
Does this unit include the air flow switch (AFS)?
The PS1202C00 does not have a built-in Air Flow Switch. If your existing system relies on an internal AFS for activation, that feature must be bypassed or utilized with an external switch.
What happens if the P5 jumper is set incorrectly?
Setting the jumper incorrectly can result in "false wash" indicators or suboptimal air cleaning. Consult the servicing data for your specific cell size to select either the 1.65mA or 2.1mA position.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
