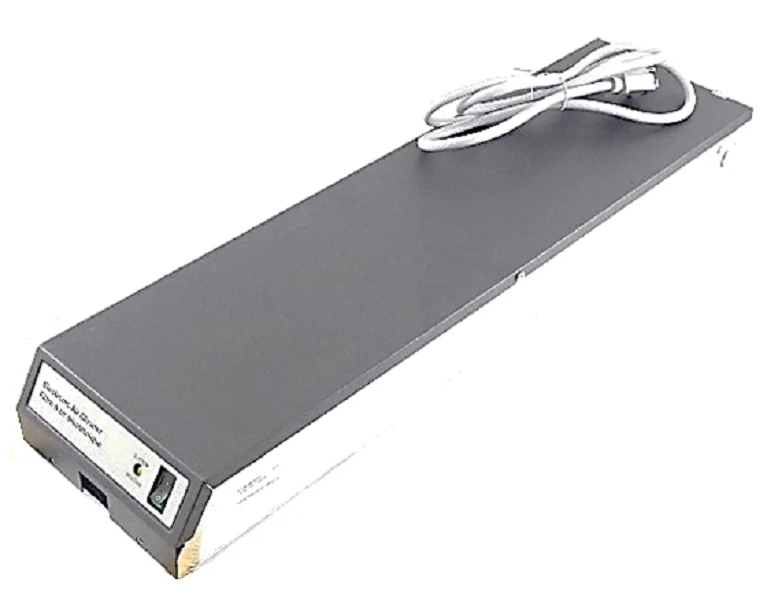

Resideo PS1202B25 Replacement Power Supply Box
The Resideo PS1202B25 Replacement Power Supply Box is a critical 120 Vac component designed for field service and restoration of Honeywell F50 and F300 Series Electronic Air Cleaners. Built to handle the rigorous demands of residential and light commercial IAQ (Indoor Air Quality) systems, this assembly is a direct replacement for 25-inch cabinet models, including 16x25 and 20x25 configurations. As a Series One power box, it features the necessary integrated driver board to support older W8600E LED remote indicators while remaining compatible with newer W8600F versions. HVAC technicians must verify the ionizer current settings during installation; the P5 jumper should be configured to 1.65mA or 2.1mA depending on the specific cell size to ensure peak electrostatic precipitating performance. This replacement kit includes the updated PS1202A00 power supply board, air flow sensor compatibility, and a pre-installed 60-inch power cord with a three-prong plug for rapid Electronic Air Cleaner repair and immediate system uptime.
Key Benefits- Universal Compatibility: Engineered specifically for F50F, F58F, and F300 series air cleaners using 120V input.
- Configurable Output: Features an adjustable P5 jumper allowing 1.6mA or 2.1mA ionizer current for varied collector cell capacities.
- Integrated Protection: Includes a high-voltage neon indicator for visual confirmation of the power supply status and cell operation.
- Drop-In Installation: The 25-inch metal chassis design facilitates quick mounting with standard sheet metal screws to the existing frame.
- System Flexibility: Supports W8600E Airwatch solid-state performance indicators and internal airflow sensing switches.
Is the PS1202B25 compatible with 20x25 and 16x25 models?
Yes, this 25-inch power box is specifically designed for the larger cabinet sizes used in Honeywell/Resideo 16x25 and 20x25 electronic air cleaner frames.
Does this unit replace the older 208417Q power boxes?
The PS1202B25 is the official replacement for legacy part numbers 208417Q, 203314A, and 203314B, providing an updated internal board and improved driver circuitry.
How do I set the correct ionizer current?
Field technicians should refer to the internal schematic to set the P5 shorting bar. For 16x25 and 20x20 units, the 1.65mA setting is typically required, while 20x25 units require the 2.1mA setting for optimal particulate capture.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $474.18
-65%$474.18
$165.96Resideo PS1202B25 Replacement Power Supply Box
