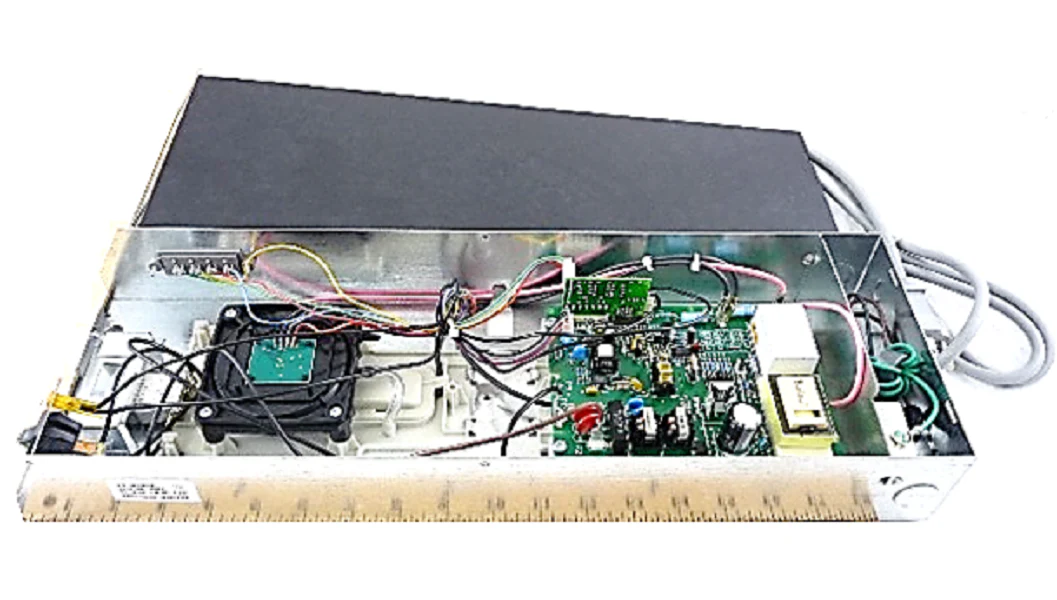

Resideo PS1202B20 Replacement Power Supply
For field technicians servicing Honeywell Home electronic air cleaners, the Resideo PS1202B20 replacement power supply is the designated 120 Vac power pack for restoring high-voltage filtration performance. This unit is specifically engineered for 20x20 electronic air filters and 16x20 electronic air cleaners, providing the precise 8150 Vdc ionizer and 4075 Vdc collector voltages required for optimal particulate removal. As an OEM HVAC replacement part, it replaces discontinued or failing power boxes like the 203315A, 208418F, and 208418G. Designed for compatibility with the F50 and F300 series, this 120V air cleaner power pack includes a pre-configured jumper (P5) to set the ionizer current at 1.65 mA for standard 2-cell configurations. The heavy-duty 120 Vac EAC power box ensures your clients' systems maintain steady ionization to capture dust and pollen without the performance drops associated with aging solid-state components.
Key Benefits
- Direct OEM Compatibility: Engineered as a drop-in replacement for Resideo PS1202B20 components in F50F and F300 air cleaners.
- Precision Voltage Output: Delivers 8150 Vdc to the ionizer section and 4075 Vdc to the collector cells for consistent filtration efficiency.
- Optimized for Specific Sizes: High-performance calibration specifically for 16 x 20 in and 20 x 20 in cabinet dimensions.
- Simplified Field Service: Features standard mounting holes and lead-wire terminals for rapid installation during routine maintenance calls.
- Solid-State Reliability: Replaces older W8600E performance indicator power supplies with updated, stable internal circuitry.
Common Questions
How do I confirm if this power pack fits my air cleaner?
This unit is designed for 120V models of the F50 and F300 series, specifically those using 16x20 or 20x20 cabinets. Check your existing power box for part number 203315A or PS1202B20 to ensure a match.
Do I need to calibrate the jumper settings?
The P5 jumper is usually pre-set for 1.6mA/2.1mA outputs. For 16x20 and 20x20 units, verify the jumper is positioned for 1.65 mA to maintain the correct ionizer current draw.
Can this unit be converted to 240V in the field?
While originally 120V, certain models can be converted using a 203365A conversion kit, though it is recommended to use the dedicated 240V SKU if the primary service power is not 120 Vac.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
