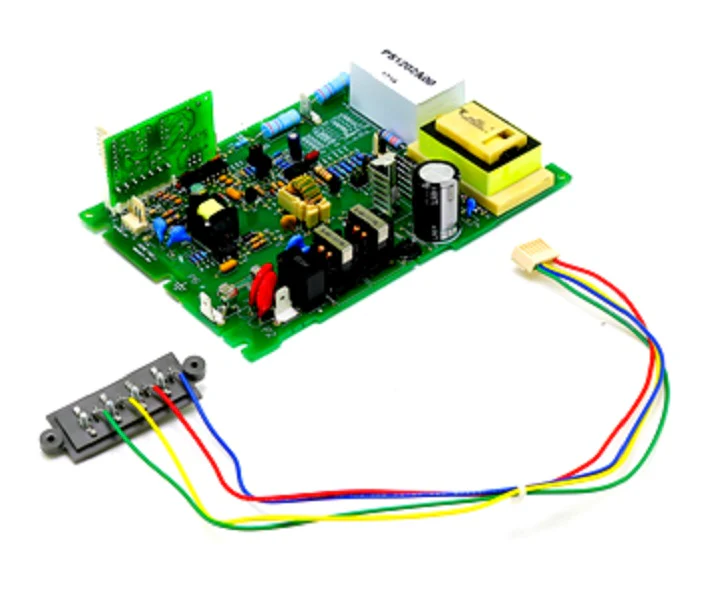

Resideo PS1202A00 Power Supply Box
The Resideo PS1202A00 Power Supply Box is a critical field replacement component designed for 120 Vac electronic air cleaners within the Honeywell F50 and F300 series. As a veteran-grade HVAC replacement part, this unit is technically identical to the PS1202A00/U universal designation, ensuring full compatibility with high-voltage filtration systems. This power supply includes the integrated RPID driver board required for LED indicators and solid-state performance monitoring. When troubleshooting a failed EAC, technicians should verify the P5 shorting bar position to match the specific cabinet size, whether it is a 16x20, 16x25, 20x20, or 20x25 model. The PS1202A00 restores the 8150 Vdc ionizer and 4075 Vdc collector voltage levels necessary for effective particulate moving and air scrubbing. Engineering focus on HVAC technical specifications ensures this regulated DC output board fits seamlessly into the existing power box housing, utilizing the original leadwires and sheet metal screws for a fast, reliable swap.
Key Benefits- Universal Compatibility: Direct replacement for 120V systems, including legacy F50F and newer F300E models.
- Integrated Diagnostics: Includes the driver board for seamless interfacing with neon indicator lights and status LEDs.
- Adjustable Performance: Features a selectable jumper bar to calibrate ionizer current based on the specific filter cell dimensions.
- Solid-State Reliability: Replaces the W8600E performance indicator assemblies to restore high-voltage arcing capability.
- Simplified Installation: Designed for direct physical fitment into the air cleaner chassis without requiring new mounting holes.
Is the PS1202A00 compatible with the PS1202A00/U model?
Yes, both part numbers refer to the same 120 Vac power supply assembly and are interchangeable for all F50 and F300 electronic air cleaner applications.
Does this power supply include the ground wires or choke?
This is the bare power supply box and driver board assembly; it does not typically include the external ground choke or secondary wiring harnesses, which should be reused from the original installation.
How do I confirm the power supply has failed?
If the system blower is running and the access door is latched but the neon light remains off after pressing the test button, the PS1202A00 is likely the point of failure, provided the cells are clean and dry.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $230.62
-65%$230.62
$80.72Resideo PS1202A00 Power Supply Box
