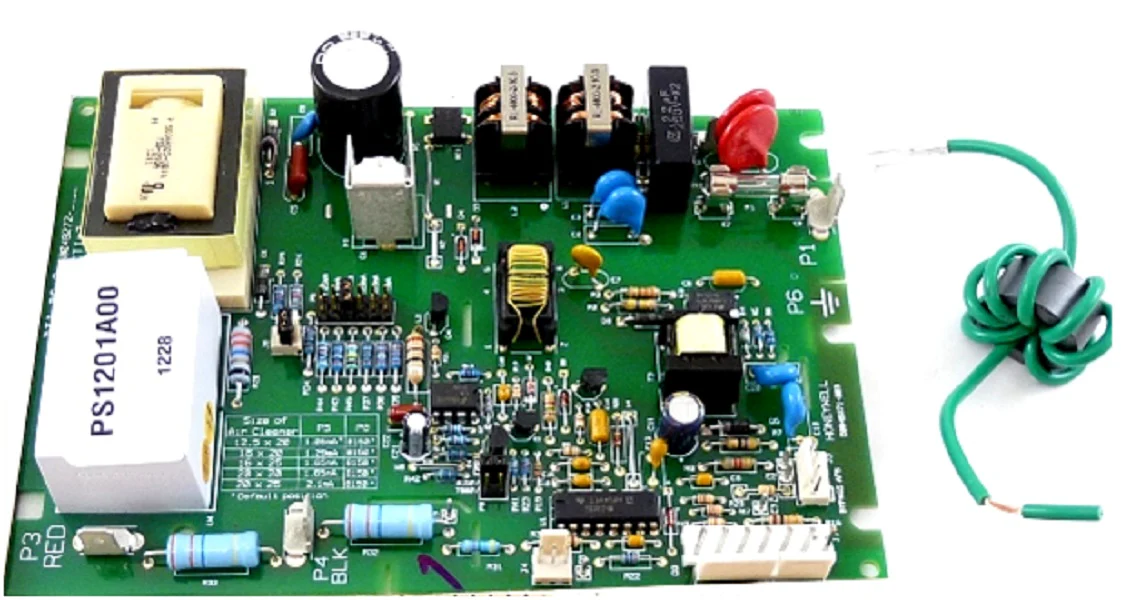

Resideo PS1201A00 Power Supply
Upgrade your air filtration system equipment with the Resideo PS1201A00 Power Supply, a direct replacement engineered for high-performance Honeywell F50 and F300 electronic air cleaners. This 120 Vac component is chemically and electrically identical to the PS1201A00/U model, ensuring a seamless drop-in fit for maintenance cycles. As a veteran technician knows, maintaining the correct ionizer voltage is critical for particle collection; this board features a selectable ionizer current via the P5 shorting bar, allowing you to calibrate the output specifically for cell sizes ranging from 12.5x20 to 20x25. It supports dual-stage filtration by providing a nominal 8150 Vdc to the ionizer and 4075 Vdc to the collector plates. Designed for HVAC air cleaner repair, the unit includes a ground line choke to eliminate ground loop frequencies and prevent nuisance tripping. Ensure your indoor air quality system operates at peak efficiency by replacing legacy 208045 or 208414 series boards with this modernized Resideo hardware.
Key Benefits- Universal Compatibility: Fits F50F and F300E series models across all standard cabinet dimensions.
- Field Adjustable: Features a selectable jumper for precise ionizer current settings (1.05 mA to 2.1 mA) based on total cell surface area.
- Enhanced Protection: Integrated ground choke and surge protection mitigate electrical noise and protect sensitive residential HVAC controls.
- Direct Replacement: Replaces obsolete parts 208045A/B/G/J and 208414H without modifying the existing power box chassis.
Is the PS1201A00 compatible with older Honeywell Series 1 and Series 2 units?
Yes, this versatile board is designed to service both generations of electronic air cleaners. It includes the necessary primary leads and connectors for Series 2 plug-and-play installation and can be adapted for Series 1 wiring configurations.
How do I set the P5 jumper for my specific air cleaner size?
The P5 shorting bar must be positioned according to the cabinet size to maintain optimal filtration efficiency. For 16x25 or 20x20 models, the bar is typically set to 1.65 mA, while 20x25 models require the 2.1 mA setting for maximum ionization.
Will this board work with a 240V system?
The PS1201A00 is a dedicated 120 Vac power supply. To operate in a 240V environment, it requires the addition of the 203365A field conversion kit.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $230.63
-65%$230.63
$80.72Resideo PS1201A00 Power Supply
Upgrade your air filtration system equipment with the Resideo PS1201A00 Power Supply, a direct replacement engineered for high-performance Honeywell F50 and F300 electronic air cleaners. This 120 Vac component is chemically and electrically identical to the PS1201A00/U model, ensuring a seamless drop-in fit for maintenance cycles. As a veteran technician knows, maintaining the correct ionizer voltage is critical for particle collection; this board features a selectable ionizer current via the P5 shorting bar, allowing you to calibrate the output specifically for cell sizes ranging from 12.5x20 to 20x25. It supports dual-stage filtration by providing a nominal 8150 Vdc to the ionizer and 4075 Vdc to the collector plates. Designed for HVAC air cleaner repair, the unit includes a ground line choke to eliminate ground loop frequencies and prevent nuisance tripping. Ensure your indoor air quality system operates at peak efficiency by replacing legacy 208045 or 208414 series boards with this modernized Resideo hardware.
Key Benefits- Universal Compatibility: Fits F50F and F300E series models across all standard cabinet dimensions.
- Field Adjustable: Features a selectable jumper for precise ionizer current settings (1.05 mA to 2.1 mA) based on total cell surface area.
- Enhanced Protection: Integrated ground choke and surge protection mitigate electrical noise and protect sensitive residential HVAC controls.
- Direct Replacement: Replaces obsolete parts 208045A/B/G/J and 208414H without modifying the existing power box chassis.
Is the PS1201A00 compatible with older Honeywell Series 1 and Series 2 units?
Yes, this versatile board is designed to service both generations of electronic air cleaners. It includes the necessary primary leads and connectors for Series 2 plug-and-play installation and can be adapted for Series 1 wiring configurations.
How do I set the P5 jumper for my specific air cleaner size?
The P5 shorting bar must be positioned according to the cabinet size to maintain optimal filtration efficiency. For 16x25 or 20x20 models, the bar is typically set to 1.65 mA, while 20x25 models require the 2.1 mA setting for maximum ionization.
Will this board work with a 240V system?
The PS1201A00 is a dedicated 120 Vac power supply. To operate in a 240V environment, it requires the addition of the 203365A field conversion kit.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
