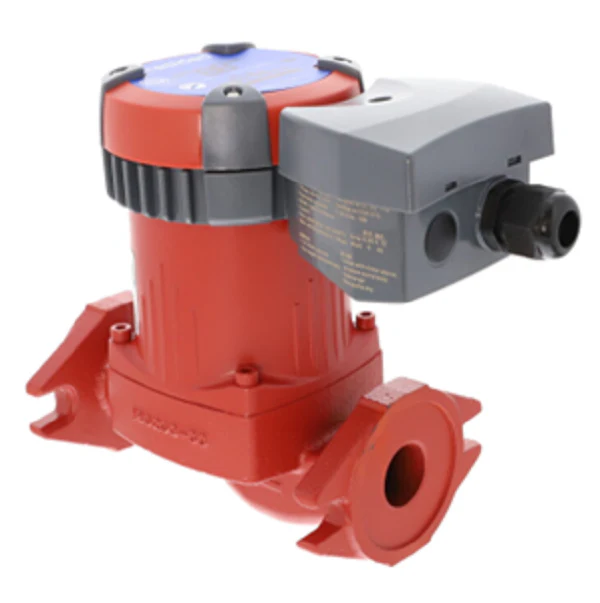

Resideo PCVF-ECM2020 Pump
The Resideo PCVF-ECM2020 is a high-efficiency wet rotor circulator pump designed for precise flow control in residential and light commercial hydronic systems. This ECM pump features a versatile universal flange-to-flange dimension, ensuring it serves as a drop-in circulator pump replacement for standard 3-piece or fixed-speed models. Operating on 120V, the integrated electronically commutated motor significantly reduces power consumption while delivering a maximum head of 20 feet and a flow rate of up to 20 GPM. The Resideo PCVF-ECM2020 offers multiple control modes, including constant pressure, proportional pressure, and min-max speeds, allowing technicians to optimize system delta-T and eliminate velocity noise. Its cast iron construction and internal chemistry-resistant components make it a reliable choice for closed-loop hydronic heating systems. By automating hydronic flow control, this unit minimizes thermal loss and electrical overhead, providing a professional-grade solution for modernizing legacy boiler loops.
- Universal Compatibility: Standard 2-bolt flange design replaces various Grundfos, Taco, and B&G models.
- Dynamic Control: Variable speed logic adapts to changing zone demands, preventing over-pumping and dead-heading.
- High Torque Start: Advanced ECM technology ensures reliable startup even after seasonal shutdowns.
- Quiet Operation: Wet rotor design uses the pumped fluid to lubricate bearings, reducing mechanical vibration.
Common Questions
Is the Resideo PCVF-ECM2020 compatible with existing flanges?
Yes, the universal flange orientation is designed to match standard 6-3/8 inch port-to-port dimensions, making it compatible with most residential circulating pump setups.
Can this pump handle glycol mixtures?
This circulator is rated for use with water and typical ethylene or propylene glycol solutions up to a 50% concentration in closed-loop systems.
Does this model require external controllers for speed adjustment?
No, the speed settings and pressure modes are adjusted directly on the motor-mounted user interface, simplifying the commissioning process for the installer.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
