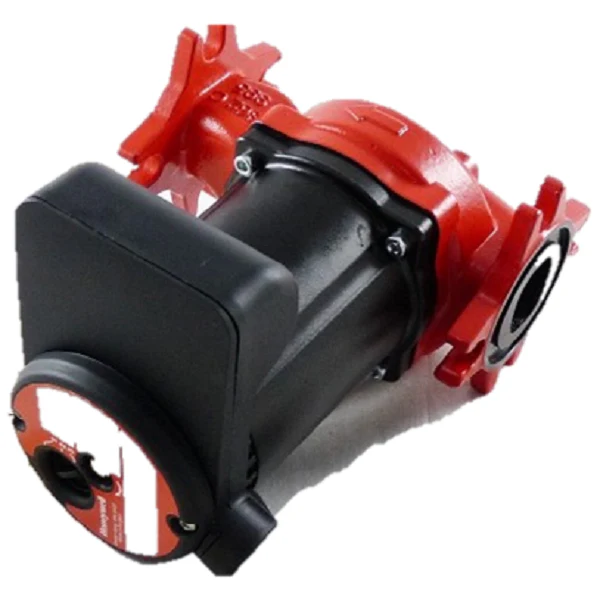

Resideo PC3F2699IUF00 Pump
The Resideo PC3F2699IUF00 AquaPUMP is a high-performance, 3-speed in-line wet rotor circulator engineered for closed-loop hydronic heating and cooling systems. Designed for maximum versatility in the field, this cast iron pump features a Twist-To-Fit universal flange that rotates 90 degrees to accommodate existing piping configurations without extensive repiping. With a maximum flow rate of 35.23 GPM and 31 feet of head pressure, it provides the lifted capacity required for demanding residential and light commercial hydronic applications. The integrated 3-step switch allows technicians to manually select the optimal motor speed—ranging from 32W to 85W—to match system requirements and improve energy efficiency. Built for durability, the unit utilizes ceramic bearings and a ceramic shaft to ensure quiet operation (43 dB(A)) while handling fluid temperatures up to 230°F. This 115V hydronic circulator pump serves as a reliable replacement for a wide range of competitive models in solar powered systems and radiant heating setups.
Key Benefits for Technicians- Universal Compatibility: The rotatable universal flange reduces the need to carry multiple SKUs, fitting most standard 2nd-party installations.
- Optimized Performance: Provides three manual speeds to precisely dial in system flow, preventing velocity noise and improving heat transfer efficiency.
- Robust Construction: Features a durable cast iron housing and high-grade ceramic shaft for longevity in closed-loop environments.
- Ease of Installation: Standard 6.5-inch port-to-port dimensions and internal thermal overload protection simplify retrofitting and startup.
Is the PC3F2699IUF00 compatible with glycol?
Yes, this pump is rated for use with clean water or water/glycol mixtures up to 50% concentration. Note that flow characteristics may vary slightly when operating with higher glycol percentages due to increased fluid viscosity.
Can this pump be used in open-loop potable water systems?
No, this model features a cast iron housing designed specifically for closed-loop hydronic heating and cooling. For domestic potable water applications, a stainless steel or bronze pump housing is required to prevent corrosion.
What are the electrical requirements for the 3-speed settings?
The motor operates at 115V. Speed 1 pulls approximately 0.3A (32W), Speed 2 pulls 0.5A (55W), and Speed 3 pulls 0.75A (85W), allowing for field-adjustable power consumption based on the required GPM flow rate.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $458.83
-65%$458.83
$160.59Resideo PC3F2699IUF00 Pump
The Resideo PC3F2699IUF00 AquaPUMP is a high-performance, 3-speed in-line wet rotor circulator engineered for closed-loop hydronic heating and cooling systems. Designed for maximum versatility in the field, this cast iron pump features a Twist-To-Fit universal flange that rotates 90 degrees to accommodate existing piping configurations without extensive repiping. With a maximum flow rate of 35.23 GPM and 31 feet of head pressure, it provides the lifted capacity required for demanding residential and light commercial hydronic applications. The integrated 3-step switch allows technicians to manually select the optimal motor speed—ranging from 32W to 85W—to match system requirements and improve energy efficiency. Built for durability, the unit utilizes ceramic bearings and a ceramic shaft to ensure quiet operation (43 dB(A)) while handling fluid temperatures up to 230°F. This 115V hydronic circulator pump serves as a reliable replacement for a wide range of competitive models in solar powered systems and radiant heating setups.
Key Benefits for Technicians- Universal Compatibility: The rotatable universal flange reduces the need to carry multiple SKUs, fitting most standard 2nd-party installations.
- Optimized Performance: Provides three manual speeds to precisely dial in system flow, preventing velocity noise and improving heat transfer efficiency.
- Robust Construction: Features a durable cast iron housing and high-grade ceramic shaft for longevity in closed-loop environments.
- Ease of Installation: Standard 6.5-inch port-to-port dimensions and internal thermal overload protection simplify retrofitting and startup.
Is the PC3F2699IUF00 compatible with glycol?
Yes, this pump is rated for use with clean water or water/glycol mixtures up to 50% concentration. Note that flow characteristics may vary slightly when operating with higher glycol percentages due to increased fluid viscosity.
Can this pump be used in open-loop potable water systems?
No, this model features a cast iron housing designed specifically for closed-loop hydronic heating and cooling. For domestic potable water applications, a stainless steel or bronze pump housing is required to prevent corrosion.
What are the electrical requirements for the 3-speed settings?
The motor operates at 115V. Speed 1 pulls approximately 0.3A (32W), Speed 2 pulls 0.5A (55W), and Speed 3 pulls 0.75A (85W), allowing for field-adjustable power consumption based on the required GPM flow rate.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
