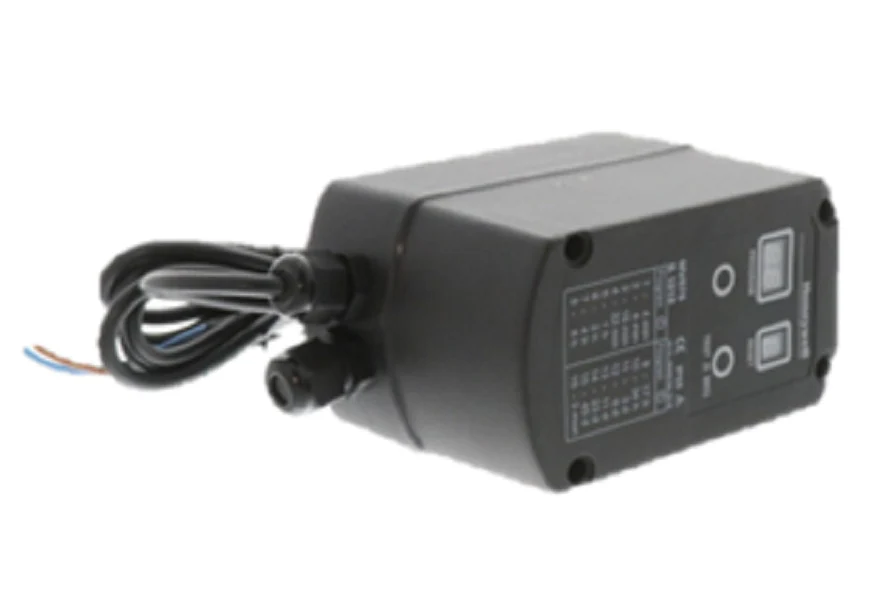

Resideo MV876B1018 Backwash Control
The Resideo MV876B1018 Backwash Control is an industrial-grade actuator designed specifically for the automated cleaning of Honeywell F76S water filters and F74C pressure filters. This 24V motorized backwash controller initiates the cleaning cycle based on a user-defined interval, ensuring consistent sediment removal without manual intervention. It features a high-torque internal motor capable of cycling the filter ball valve even in systems with high particulate load. The MV876B1018 utilizes a 24Vac supply and includes a pressure differential switch input for demand-based cleaning, making it a critical component for maintaining system pressure and protecting downstream plumbing infrastructure. Integration is straightforward with the automatic backwash valve interface, allowing for precise field adjustments of the rinse duration. This control unit is built for long-term reliability in commercial and residential filtration setups, preventing scale buildup and ensuring the longevity of inline water filters.
Key Benefits
- Automated Sediment Clearing: Eliminates the need for manual maintenance by automating the F76S backwash valve cycle.
- Field-Adjustable Intervals: Features programmable timers to match the specific sediment loading requirements of the local water supply.
- Differential Pressure Compatibility: Accepts inputs from external sensors to trigger cycles based on actual pressure drop.
- System Protection: Maintains optimal flow rates and prevents pressure loss across Honeywell water filtration systems.
- Robust 24V Actuation: High-torque motor ensures reliable operation of the internal ball valve mechanism under standard operating pressures.
Common Questions
Is the MV876B1018 compatible with all F76S filter sizes?
Yes, this backwash control is engineered to fit the entire range of Resideo F76S and F74C housing sizes, utilizing a universal mounting bracket for consistent alignment.
Does this unit require a separate power transformer?
The unit operates on 24Vac. If your current filtration setup does not have an existing 24V lead, a standard 40VA transformer will be required for installation.
What triggers the backwash cycle on this model?
The MV876B1018 can be triggered by its internal timer, a manual override button, or an external pressure differential switch for demand-responsive cleaning.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
