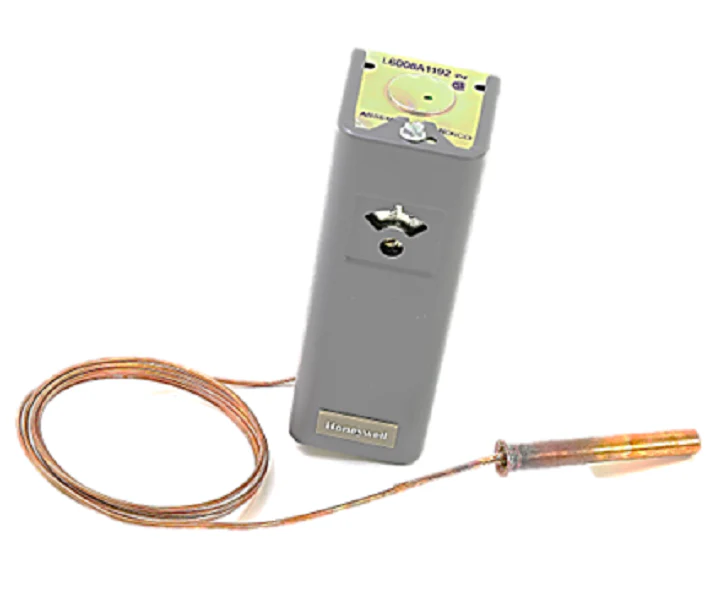

Resideo L6008A1192 Control
The Resideo L6008A1192 Control is a versatile remote bulb immersion type temperature control designed for heavy-duty hydronic heating systems and storage tank applications. This aquastat controller functions as a reliable circulator control and low limit, ensuring the pump only activates when optimal boiler temperatures are achieved. With its SPDT switching action, this unit offers flexibility for both heating and cooling equipment logic, making it a staple for any veteran contractor’s truck. The 100-240 degree operating temperature range paired with a 5-30 degree adjustable differential allows for precise system tuning to prevent short-cycling and maximize equipment life. Engineered for horizontal or vertical mounting, it features a 5-1/2 foot capillary length for flexible remote placement away from the sensing immersion well. A factory stop set at 240 degrees provides an integrated safety threshold for high-temperature protection.
Key Benefits- Rapid Response: The copper remote sensing bulb detects thermal shifts instantly for accurate boiler temperature regulation.
- Application Versatility: Dual-purpose circulator and low limit control logic accommodates a wide range of oil-fired and gas-fired systems.
- Precision Tuning: The adjustable temperature differential provides granular control over burner and pump cycles.
- Durable Construction: Features a totally enclosed Micro Switch snap-acting switch to withstand harsh mechanical room environments.
- Remote Mounting: The 66-inch capillary allows for the controller case to be mounted in a visible, accessible location while the bulb stays in the tapping.
Is the immersion well included with the L6008A1192?
No, the immersion well or compression fittings are typically ordered separately to match the specific boiler tapping size and depth requirements of your installation.
Can this be used as a high-limit safety control?
While it features a factory stop at 240 degrees, this specific model is primarily utilized for circulator control and low-limit applications. For dedicated high-limit safety with manual reset, refer to the L4008 series.
How does the SPDT switching benefit my system?
The Single Pole Double Throw (SPDT) action allows the controller to break one circuit while making another on temperature rise, which is essential for simultaneous pump control and burner interlocking.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
