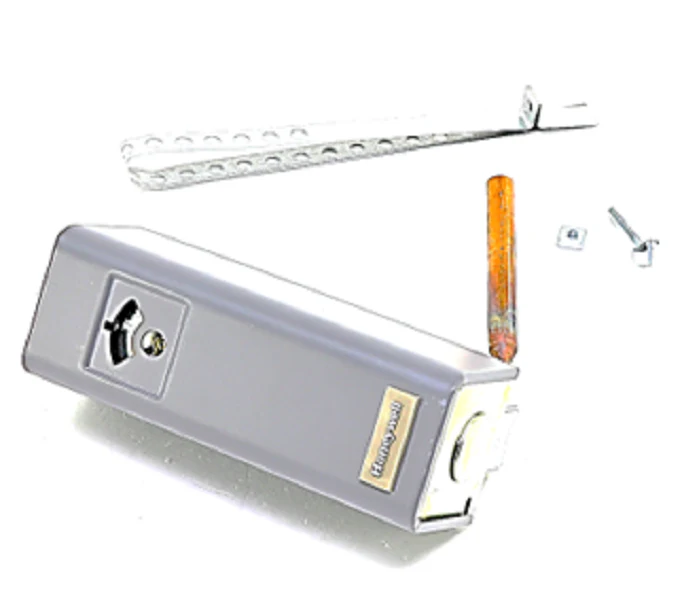

Resideo L6006C1018 Aquastat Controller
The Resideo L6006C1018 Aquastat Controller is a professional-grade hydronic control designed for high-performance temperature regulation in residential and commercial boilers and storage tanks. This versatile immersion-type temperature controller features a Single Pole Double Throw (SPDT) switching action, allowing it to function as a circulator control, high limit, or low limit. Built with a 3/8" x 2 7/8" copper bulb sensing element, the L6006C1018 ensures rapid thermal response and accurate liquid temperature monitoring. The unit operates within a 65°F to 200°F temperature range and offers an adjustable differential of 5°F to 30°F, giving technicians precise control over system cycling and burner staging. Engineered for flexibility, it supports both horizontal and vertical mounting configurations. The internal Micro Switch snap-acting switches are fully enclosed to prevent contamination, ensuring reliable performance in demanding mechanical rooms. This Honeywell Aquastat replacement is compatible with 120V and 240V systems, as well as millivolt applications, making it a staple for any hydronic heating toolkit.
Key Benefits
- Dual-Function Versatility: The SPDT contacts allow for flexible application as a high limit, low limit, or boiler circulator control based on wiring.
- Precision Tuning: Features a 5-30 degree adjustable differential to prevent short-cycling and optimize fuel efficiency in hydronic systems.
- Robust Sensing: Equipped with a copper sensing bulb for superior heat transfer and accurate liquid temperature regulation.
- Simplified Installation: Supports horizontal or vertical orientation and includes a visible control scale with an external adjustment screw for fast field setup.
- Wide Compatibility: Rated for line voltage (120/240 VAC) and millivolt heating systems (0.25 A @ 0.25 to 12 Vdc).
Common Questions
Can the L6006C1018 be used as a strap-on controller?
Yes, while designed for immersion applications, this model is frequently used as a strap-on aquastat for sensing surface pipe temperature when used with appropriate mounting brackets or in retrofitting applications.
How do I adjust the temperature setpoint?
The controller features a visible control point scale and a top-mounted adjustment screw, allowing you to set the desired temperature without removing the cover.
What is the maximum ambient temperature for this device?
The Resideo L6006C1018 is designed to operate in ambient temperatures up to 150°F (66°C), making it suitable for standard boiler room environments.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
