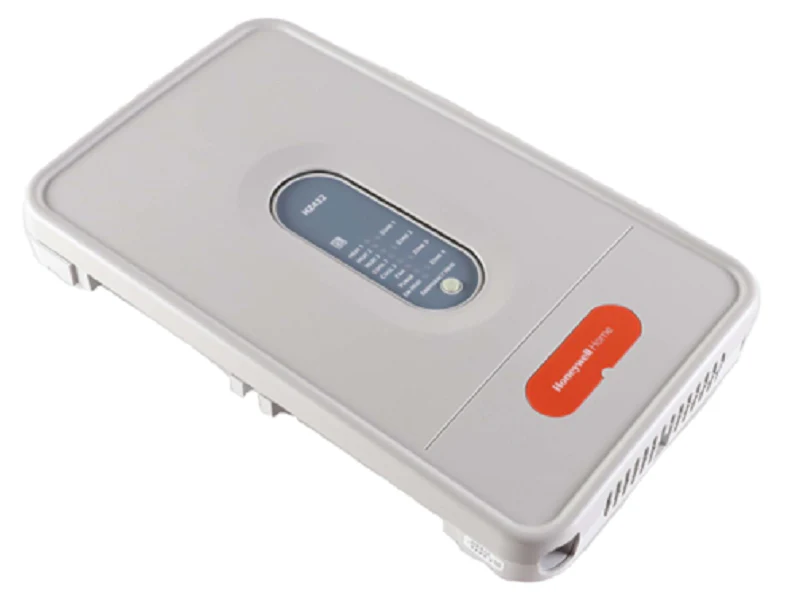

Resideo HZ432 Zone Panel
The Resideo HZ432 TrueZONE panel is a field-proven forced-air zoning controller designed for demanding residential and light commercial applications. Capable of managing up to four zones out of the box, this 4-zone controller supports 3H/2C stages for conventional systems and up to 4H/2C for heat pump applications, including dual-fuel and electric strip heat configurations. The intuitive digital display simplifies automated commissioning and advanced configuration, eliminating the guesswork associated with traditional dip-switch setups. High-side and low-side DAST (Discharge Air Temperature Sensor) monitoring ensures equipment protection by managing limit controls and preventing coil freeze-up or furnace overheating. For technicians, the push-pin terminal blocks provide secure, tool-less wiring connections, significantly reducing labor time on the job site. This robust HVAC zone control solution integrates seamlessly with standard 24V thermostats and Resideo RedLINK wireless adapters, offering maximum flexibility for retrofit zoning or new installations.
- Universal Application: Supports heat pump, conventional, and dual-fuel systems with up to 4 heating and 2 cooling stages.
- Advanced Protection: Integrated Discharge Air Temperature (DATS) monitoring prevents equipment cycle damage during low airflow conditions.
- Guided Setup: On-board digital interface provides a step-by-step configuration wizard and real-time diagnostic feedback.
- Expandable Logic: Scalable up to 32 zones using TAZ-4 add-on modules for larger commercial footprints.
- Standardized Wiring: Color-coded, push-to-connect terminals ensure consistent landing of wires for 24V power and damper actuators.
Common Technical Questions
Can I use the HZ432 for dual-fuel heat pump installations?
Yes, the HZ432 includes an integrated dual-fuel logic controller, eliminating the need for external fossil fuel kits when an outdoor temperature sensor is utilized.
What types of dampers are compatible with this board?
It is designed to control any standard 24VAC power-open/power-close or spring-return actuators, including Resideo ARD and ZD series dampers.
Does this panel require a dedicated transformer?
The panel requires a 24VAC transformer; the VA rating must be calculated based on the total load of the panel and the connected dampers (typically 40VA to 75VA).
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $477.40
-65%$477.40
$167.09Resideo HZ432 Zone Panel
The Resideo HZ432 TrueZONE panel is a field-proven forced-air zoning controller designed for demanding residential and light commercial applications. Capable of managing up to four zones out of the box, this 4-zone controller supports 3H/2C stages for conventional systems and up to 4H/2C for heat pump applications, including dual-fuel and electric strip heat configurations. The intuitive digital display simplifies automated commissioning and advanced configuration, eliminating the guesswork associated with traditional dip-switch setups. High-side and low-side DAST (Discharge Air Temperature Sensor) monitoring ensures equipment protection by managing limit controls and preventing coil freeze-up or furnace overheating. For technicians, the push-pin terminal blocks provide secure, tool-less wiring connections, significantly reducing labor time on the job site. This robust HVAC zone control solution integrates seamlessly with standard 24V thermostats and Resideo RedLINK wireless adapters, offering maximum flexibility for retrofit zoning or new installations.
- Universal Application: Supports heat pump, conventional, and dual-fuel systems with up to 4 heating and 2 cooling stages.
- Advanced Protection: Integrated Discharge Air Temperature (DATS) monitoring prevents equipment cycle damage during low airflow conditions.
- Guided Setup: On-board digital interface provides a step-by-step configuration wizard and real-time diagnostic feedback.
- Expandable Logic: Scalable up to 32 zones using TAZ-4 add-on modules for larger commercial footprints.
- Standardized Wiring: Color-coded, push-to-connect terminals ensure consistent landing of wires for 24V power and damper actuators.
Common Technical Questions
Can I use the HZ432 for dual-fuel heat pump installations?
Yes, the HZ432 includes an integrated dual-fuel logic controller, eliminating the need for external fossil fuel kits when an outdoor temperature sensor is utilized.
What types of dampers are compatible with this board?
It is designed to control any standard 24VAC power-open/power-close or spring-return actuators, including Resideo ARD and ZD series dampers.
Does this panel require a dedicated transformer?
The panel requires a 24VAC transformer; the VA rating must be calculated based on the total load of the panel and the connected dampers (typically 40VA to 75VA).
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
