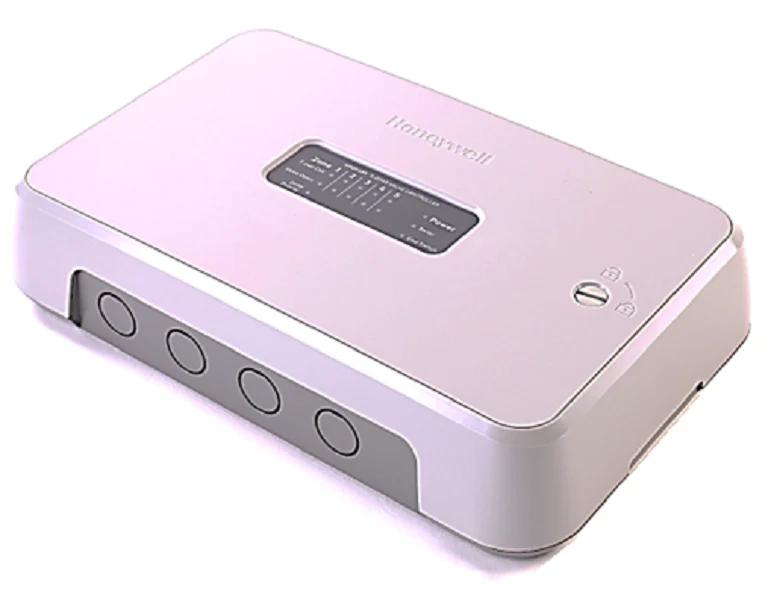

Resideo HPZC105 Controller
The Resideo HPZC105 Five Zone Valve Controller is an industry-standard hydronic zoning panel designed for precise multi-zone hydronic heating management. As a direct Honeywell HPZC105 replacement, this 120V hydronic control manages up to five independent zones using 24V zone valves and a central boiler. Its specialized Priority Zone Control ensures that critical domestic hot water (DHW) calls are met before standard heating loops, optimizing recovery times for high-demand applications. For installation flexibility, the unit includes two 24V 40 VA transformers and features a DIN rail mounting system alongside a gravity-centered hang hole, making it ideal for tight mechanical rooms. The Resideo HPZC105 is fully compatible with power-stealing and electromechanical thermostats, featuring dedicated C-terminals for each connection to eliminate troubleshooting issues on modern smart setups. With color-coded wiring terminals and an externally visible LED status panel, technicians can monitor hydronic zone valve operation and burner end switches without removing the protective cover.
Key Benefits for the Contractor:- Universal Thermostat Compatibility: Built-in C-terminals support power-stealing, digital, and electromechanical thermostats without auxiliary power kits.
- Advanced Priority Control: Dedicated logic for Zone 1 allows for domestic hot water priority with a 10-minute automated timeout for safety.
- Streamlined Installation: Features a familiar layout, color-coded terminals, and a hinged cover to reduce labor hours on new builds or retrofits.
- Reliable Monitoring: Diagnostic LEDs display zone status, burner calls, and pump activity, functional even with the panel cover closed.
- Integrated Power Supply: Shipping with two internal 40 VA transformers, the HPZC105 provides robust power for multiple zone valve actuators.
How many zones can be managed by the HPZC105?
This controller is designed for 5 independent zones. For systems requiring more extensive hydronic zoning, multiple HPZC105 or HPZC106 panels can be daisy-chained to expand capacity while maintaining communication between boards.
Is the HPZC105 compatible with 3-wire and 4-wire zone valves?
Yes, the Resideo HPZC105 supports traditional 24V zone valves. Its screw terminals and grounding nut provide a secure interface for standard industry valve actuators, including those from Honeywell, Taco, and Erie.
Does this controller work with smart thermostats?
The inclusion of a 24V common terminal for every thermostat connection ensures that Wi-Fi and smart thermostats receive consistent power, preventing the common "power-stealing" errors found on legacy zone valve panels.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
