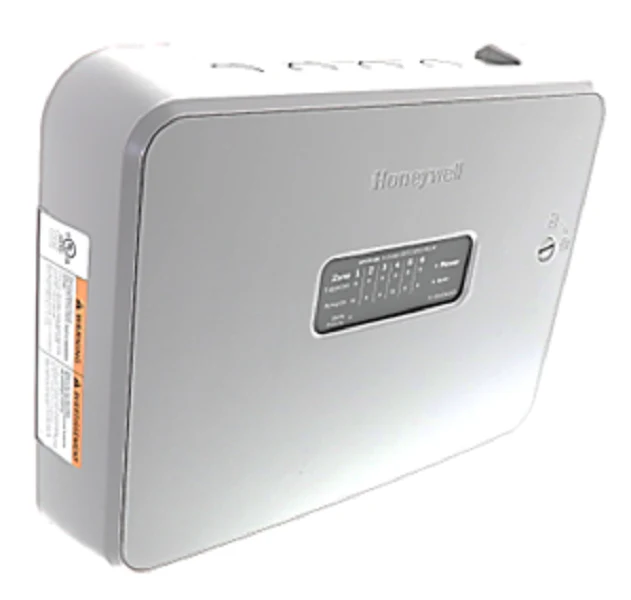

Resideo HPSR106 Switching Relay
The Resideo HPSR106 Switching Relay is a professional-grade solution for managing hydronic zoning in residential and light commercial multi-zone heating systems. This Six Zone Switching Relay operates a central boiler and up to six independent zone pumps, ensuring precise thermal distribution across the entire structure. Engineered for field reliability, it features 120 VAC 1-PH operation at 60 Hz and is housed in a robust gray enclosure with a high-visibility LED status panel that functions with the cover on or off, significantly reducing troubleshooting time for service technicians.
This hydronic pump controller provides maximum application flexibility by supporting both connected (smart) and non-connected power-stealing thermostats. Each thermostat connection includes a dedicated C-terminal to ensure stable power delivery for modern Wi-Fi models. The internal 40 VA transformer and 6-amp pump fuse provide the necessary overhead for multiple circulator pump configurations. Installation is streamlined via quick-screw terminals, color-coded wiring labels, and a gravity-centered hang hole for rapid mounting.
Key Benefits:
- Controls up to six zones with dedicated pump outputs and priority zone logic for domestic hot water.
- Compatible with connected thermostats and electromechanical models via integrated C-terminals.
- Transparent diagnostics with an LED display for real-time monitoring of zone activation and system calls.
- Familiar layout and 120V pump zoning footprint matches industry standards for seamless switching relay replacement.
- Space-saving DIN rail mounting options provide versatility for custom mechanical room panels.
Common Questions:
Can I use a smart thermostat with this relay without an external transformer?
Yes, the HPSR106 includes a 24V 40 VA transformer and provides a C-terminal for every zone, allowing direct power for smart thermostats.
Does this unit support priority for domestic hot water heating?
The HPSR106 features built-in priority control logic, allowing one zone to take precedence when integrated with an indirect water heater.
What is the maximum load capacity for each zone?
The relay is designed to manage typical 120V circulator pumps, supported by a 6-amp main pump fuse for the collector board.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
