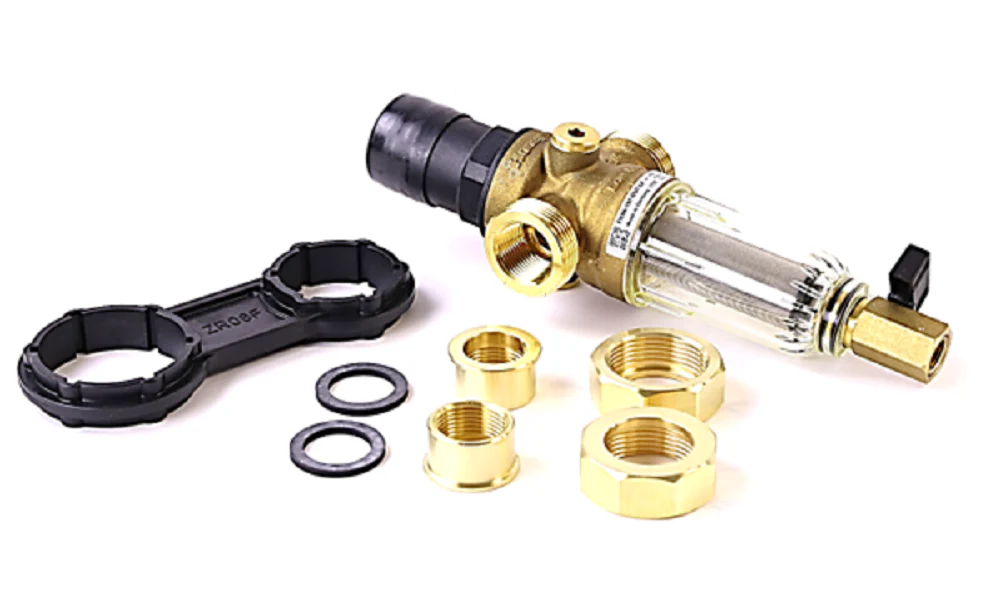

Resideo FK06-101-DUT-LF Valve
The Resideo Braukmann FK06-101-DUT-LF is a professional-grade 3/4 inch NPT dual-solution component designed for high-performance potable water and irrigation systems. As a DialSet pressure regulating valve and sediment filter combination, it streamlines installation by housing two critical functions in a single compact brass body. This unit features a balanced single-seat construction that ensures stable downstream pressure regardless of fluctuating inlet supply pressures, which can reach up to 250 psi. The integrated 50-micron stainless steel filter prevents high-velocity particulates—such as rust, grit, and scale—from damaging delicate fixtures or downstream appliances. Contractors benefit from the built-in adjustment dial, which allows for precise static pressure settings between 25 and 90 psi without the need for an external gauge. Its lead-free ECO BRASS construction ensures compliance with all modern plumbing codes while providing a corrosion-resistant flow path. The double-union NPT connections facilitate rapid retrofits and simplified maintenance in tight mechanical spaces.
Key Benefits- Dual-Function Integration: Combines a pressure reducing valve and a rinsable fine filter in one chassis, reducing overall footprint and leak points.
- Tool-Free Adjustment: The calibrated DialSet knob allows for immediate pressure regulation, factory-set at 60 psi for standard residential use.
- Enhanced Filtration Control: Features a high-visibility, shock-resistant clear filter bowl for easy inspection and a manual rinsing valve to eject sediment without halting water flow.
- Serviceability: The internal unitized cartridge contains all working parts, including the diaphragm and valve seat, and is fully replaceable without removing the valve body from the line.
- Robust Compliance: This lead-free (LF) model is ASSE 1003 listed and NSF/ANSI 61 compliant for safe potable water distribution.
- Can this unit be installed in any orientation? For optimal sediment collection and rinsing, the FK06 must be installed in horizontal pipework with the filter bowl facing downward.
- How often should the sediment filter be rinsed? Rinsing frequency depends on local water quality, but the clear bowl allows for visual checks; simply open the ball valve at the bottom of the bowl to flush trapped particles.
- What size is the gauge port? The body includes a 1/4" NPT gauge tap for technicians who require secondary pressure verification or diagnostic testing.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
