Resideo FC37A1130 Air Cleaner Cell

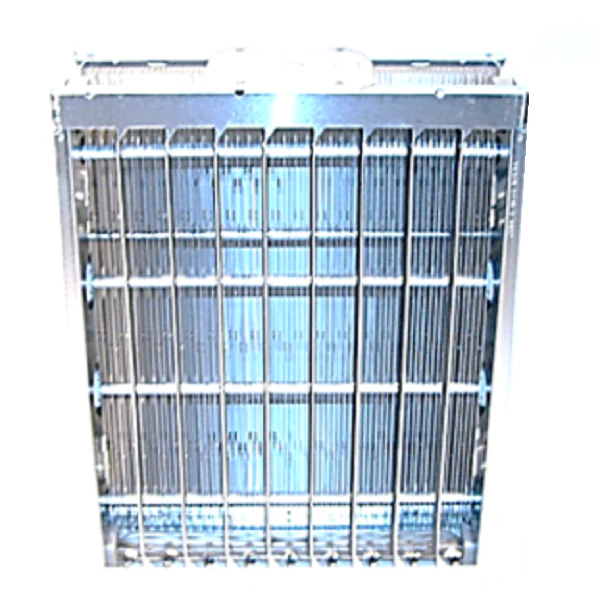

The Resideo FC37A1130 Air Cleaner Cell is a professional-grade 12.4" x 16" replacement component engineered for high-efficiency residential electronic air cleaners. Specifically designed for the Honeywell F300 and F50F series, this collector cell utilizes dual-voltage electrostatic precipitation to capture sub-micron particles, including dust, smoke, and pollen, that standard media filters miss. The unit features nine robust tungsten ionizing wires that charge incoming contaminants before they are trapped by the secondary collector plate section.
For the service technician, the FC37A1130/U replacement offers a symmetrical aluminum frame that permits versatile airflow direction (left or right) simply by rotating the chassis and remounting the plastic handle. This heavy-duty cell is built for longevity and is dishwasher safe, allowing for easy maintenance during seasonal HVAC tune-ups. Replacing a damaged or shorted collector cell restores the system's ability to protect downstream evaporator coils and heat exchangers from particle buildup, ensuring peak IAQ performance and equipment reliability.
Key Benefits for Your HVAC System- Optimized Particle Capture: Dual-section design utilizes 8200 VDC ionizing and 4200 VDC collector voltages to neutralize airborne pollutants down to 0.3 microns.
- Durable Construction: Built with high-grade aluminum plates and corrosion-resistant tungsten wires for reliable performance in varied humidity levels.
- Simplified Serviceability: Features a washable aluminum cell design, reducing long-term waste and providing a cost-effective alternative to frequent media filter replacements.
- Broad System Compatibility: Serves as the direct OEM replacement for 16x25 Honeywell Home and Resideo electronic air cleaner cabinets.
How do I troubleshoot "continuous snapping" in the air cleaner?
Frequent arcing often indicates that the electronic air cleaner cell is either wet after cleaning or has bent collector plates. Inspect the plates for physical contact and ensure the cell is completely dry before re-energizing. If a tungsten wire is broken, it must be replaced to prevent grounding issues.
What is the proper cleaning interval for the FC37A1130?
For maximum efficiency, cells should be cleaned every 6 to 12 months. In homes with high pet dander or smoke, quarterly maintenance is recommended to prevent excessive loading and system bypass.
Can I use this cell for any 16x25 air cleaner?
This specific cell measures 12.4" x 16" and is designed for cabinets requiring two cells to fit a 16" x 25" opening. Always verify your specific cabinet model (such as the F300E1019 or F50F1099) before installation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
