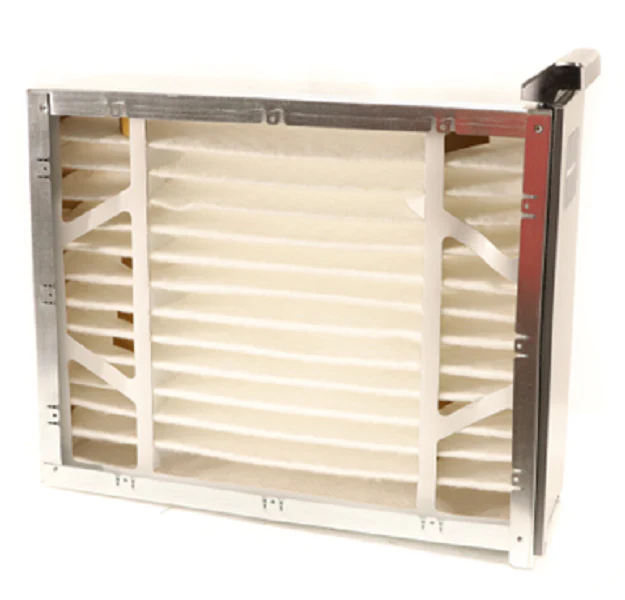

Resideo F200F1620 Air Cleaner
The Resideo F200F1620 is a trade-grade 16x20x4 media air cleaner engineered to provide superior particulate filtration in high-demand residential HVAC systems. This duct-mounted air cleaner utilizes MERV 13 charged-media technology to effectively capture bypass pollutants as small as 0.3 microns, ensuring cleaner coils and improved system longevity. Built with a rugged zinc-coated steel cabinet, this unit is designed to support the static load of a residential furnace and evaporator coil up to 5 tons. It operates with a maximum airflow capacity of 1200 CFM and maintains a low initial static pressure drop of 0.3 in. w.c. at 500 FPM, minimizing the impact on blower motor efficiency. Compatible with gas, oil, and electric forced-air systems, this Honeywell Home air cleaner requires no electrical hookups and can be installed in any orientation within the return air duct, making it a versatile solution for professional retrofits or new construction.
Key Benefits for Technicians:- High-Efficiency Filtration: The included MERV 13 filter traps smaller particles like bacteria, smoke, and allergens more effectively than standard MERV 8 or 11 media.
- Structural Durability: The corrosion-resistant cabinet features roll-formed construction, providing a stable platform for heavy equipment stacks.
- Contractor-Friendly Install: No wiring required; the universal mounting design fits easily into tight mechanical rooms and varied duct configurations.
- System Protection: Reduces dust accumulation on the A-coil and secondary heat exchanger, maintaining rated SEER/EER over time.
- Versatile Compatibility: Seamlessly integrates with 5-ton HVAC systems and is easily upgradeable to electronic air cleaner performance using the same chassis.
What is the exact duct opening size for the F200F1620?
The unit is designed for a 16-inch by 20-inch duct. The actual cabinet dimensions are approximately 16-3/16 inches high by 20 inches deep, with a 6-3/4 inch width to accommodate the 4-inch deep-pleat media.
Can I use MERV 11 filters in this cabinet?
Yes, the F200 chassis is compatible with FC100A1003 (MERV 11), FC200E1003 (MERV 13), and POPUP1620 replacement media, allowing for customized filtration levels based on the specific needs of the jobsite.
Does this unit require a power supply or wiring?
No, the F200F1620 is a passive media air cleaner that requires no electrical connections, reducing mechanical complexity and installation time compared to electronic precipitators.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
