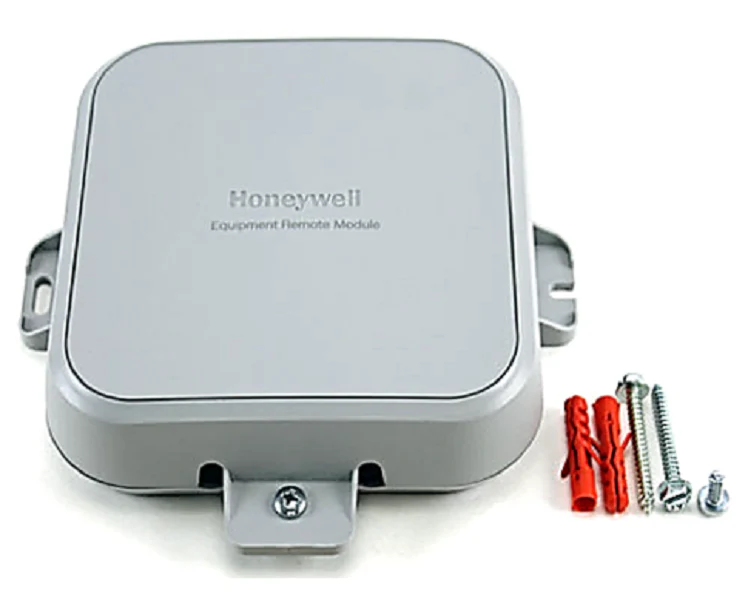

Resideo ERM5220R1018 Remote Module
The Resideo ERM5220R1018 is a professional-grade RedLINK wireless remote module engineered to eliminate the labor-intensive process of pulling new thermostat wires through finished walls. Operating on a 24 Vac power supply, this module facilitates seamless communication between your HVAC equipment and RedLINK enabled thermostats using a secure, proprietary wireless protocol. This specific ERM5220R1018 Equipment Remote Module supports versatile system configurations, managing up to 2 Heat / 2 Cool Heat Pump setups or 2 Stage Conventional systems. The unit features built-in LED indicators for instantaneous diagnostic feedback on Compressor, Boiler, and Connected status, simplifying the commissioning process. By utilizing an ERM5220R1018 HVAC installation, technicians can effectively relocate equipment or update controls in historical buildings or retrofits where physical wiring is obstructed. This wireless HVAC equipment interface ensures high-torque performance and reliable signal strength, maintaining a robust link even in complex residential or light commercial environments.
Key Benefits for Contractors- RedLINK Wireless Technology: Provides a stable connection without the need for additional communication wires or physical drilling.
- Simplified Wiring: Features color-coded terminals and a wall mount design for rapid integration into existing 24V control circuits.
- Multi-Stage Compatibility: Adaptable for both heat pump applications and multi-stage conventional furnaces and boilers.
- Diagnostic LEDs: Immediate visual verification of system operation and wireless signal strength reduces troubleshooting time.
- Flexible Placement: Enables thermostat installation in the optimal sensing location regardless of where the equipment is situated.
Can the ERM5220R1018 be used to control a boiler and an AC unit simultaneously?
Yes, the module is designed with specific terminals to handle boiler and compressor signals, making it an ideal solution for dual-fuel or hybrid heating and cooling configurations.
What is the maximum wireless range of the RedLINK signal?
While range varies based on building materials, the ERM5220R1018 remote module typically maintains a strong connection through most residential walls and floors. If signal strength is low, a RedLINK signal booster can be integrated into the network.
How do you pair the module to a RedLINK thermostat?
The pairing process involves putting the thermostat into "Wireless Setup" mode and pressing the "Connect" button on the module. The Connected LED will provide visual confirmation once the link is established.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
