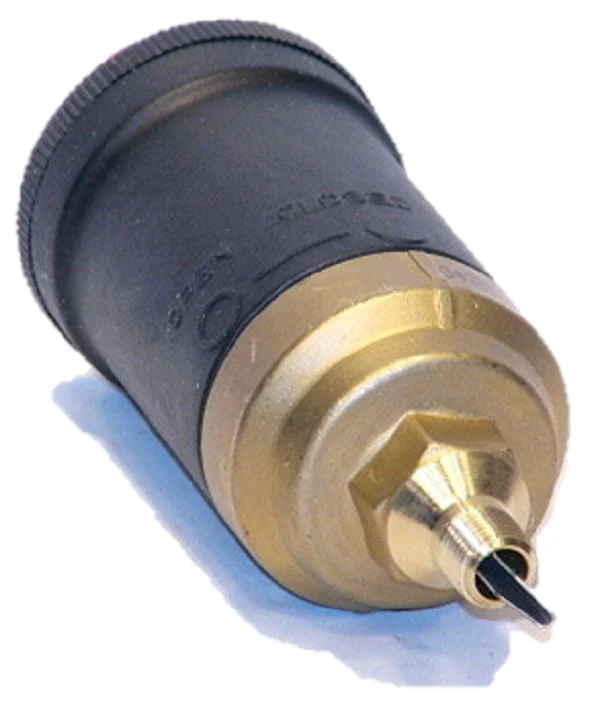

Resideo EA122A1028 Air Vent
The Resideo EA122A1028 is a professional-grade automatic air vent designed for high-efficiency air elimination in closed hydronic heating and potable water systems. Built with a 1/8 inch MNPT connection, this vent purges air from high-pressure mains and equipment to prevent air binding, noise, and component corrosion. The unit features an EPDM seat disc and O-ring, providing superior resistance to heat and chemicals, specifically in systems utilizing glycol concentrations or mineral oils. Its thermoplastic body and corrosion-resistant internals are rated for a maximum operating pressure of 90 psi and temperatures up to 212°F. A standout mechanical feature is the integrated shut-off valve, which allows technicians to service or clean the removable float assembly without draining the entire system. By maintaining an air-free environment, the Resideo Braukmann EA122A1028 ensures optimal heat transfer and prevents circulator cavitation in commercial and residential HVAC systems.
Key Benefits for Technicians- In-Line Serviceability: The built-in shut-off valve allows for the removal and cleaning of the float assembly without depressurizing the system.
- High-Durability Seals: Equipped with an EPDM seat disc and oil-resistant O-rings to handle hydronic fluids and chemical additives.
- Corrosion Resistance: Engineered thermoplastic construction ensures longevity in both hot and cold water applications.
- System Protection: Effectively removes bulk air and microbubbles to prevent air locks and quiet noisy pipes.
Where should the Resideo EA122A1028 be installed?
For maximum efficiency, install the vent at the system's high points or on the positive side of the circulator pump where air naturally accumulates.
Can this vent be used in steam systems?
No, this model is specifically engineered for closed-loop water systems and is not rated for steam applications.
What is the purpose of the red vent cap?
The red cap facilitates automatic operation; it should be loosened one full turn counter-clockwise to allow air to escape while preventing debris from entering the valve seat.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
