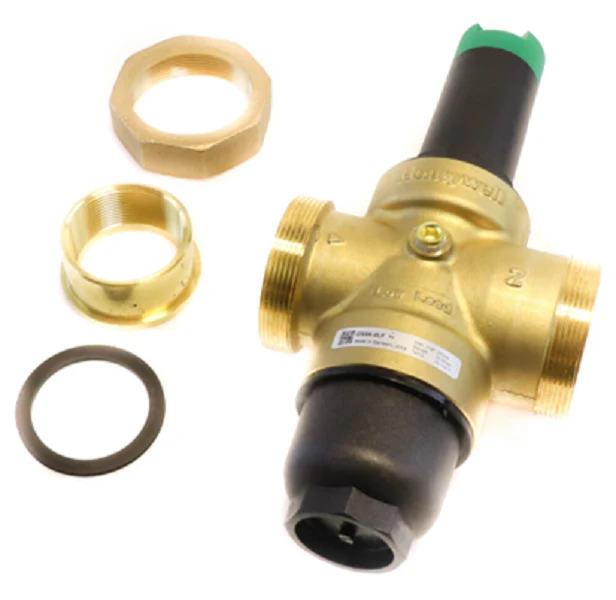

Resideo DS06-105-SUT-LF Pressure Regulating Valve
The Resideo DS06-105-SUT-LF is a high-performance 2" NPT pressure regulating valve engineered for precision control in potable water and commercial irrigation systems. This lead-free water pressure regulator features an integrated dial-set adjustment mechanism, allowing for accurate downstream pressure settings between 25 and 90 psi without the immediate need for an external gauge. Built with a rugged bronze body and a balanced cartridge design, the DS06 maintains constant outlet pressure regardless of fluctuating inlet supply conditions up to 250 psi. The unitized, non-corroding cartridge houses all working components, including the fabric-reinforced diaphragm and stainless steel internals, facilitating rapid field service and reducing downtime. For system diagnostics, 1/4" NPT gauge taps are conveniently located on both sides of the valve body. Whether you are performing a new PRV installation or replacing an existing Resideo Braukmann unit, this 2-inch pressure reducing valve ensures code-compliant, low-lead performance for demanding mechanical specifications.
Key Benefits for the Contractor:- Internal and External Threading: Versatile design supports thread-by-thread, single-union, or double-union configurations for flexible piping layouts.
- Integrated Dial-Set: Simplifies the commissioning process with a calibrated adjustment dial (+/- 4 psi accuracy) for rapid static pressure setting.
- Unitized Cartridge: All functional components are contained in a single, replaceable module to streamline maintenance and eliminate the need for complete valve removal.
- Lead-Free Compliance: Meets strict potable water standards including ASSE 1003, CSA B356, and IAPMO/UPC requirements.
- Built-In Strainer: Protects internal valve components and downstream equipment from debris, significantly reducing the risk of call-backs.
Do I need a pressure gauge to set the DS06-105-SUT-LF?
The integrated Dial-Set allows for accurate static pressure adjustment without a gauge. However, the 1/4" NPT dual taps remain available for validating dynamic flow pressure or meeting specific local inspection requirements.
Can this 2-inch PRV be installed in a vertical orientation?
While horizontal installation with the bonnet facing upward is the industry standard to prevent sediment buildup, models up to 2 inches can be installed vertically. Ensure the system is adequately flushed to prevent debris from fouling the stainless steel seat.
Is this valve suitable for high-pressure municipal mains?
Yes, the bronze body construction is rated for a maximum inlet pressure of 250 psi and offers a 10:1 maximum reduction ratio, making it ideal for stabilizing high municipal supply pressures for residential or commercial use.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $605.78
-65%$605.78
$212.02Resideo DS06-105-SUT-LF Pressure Regulating Valve
The Resideo DS06-105-SUT-LF is a high-performance 2" NPT pressure regulating valve engineered for precision control in potable water and commercial irrigation systems. This lead-free water pressure regulator features an integrated dial-set adjustment mechanism, allowing for accurate downstream pressure settings between 25 and 90 psi without the immediate need for an external gauge. Built with a rugged bronze body and a balanced cartridge design, the DS06 maintains constant outlet pressure regardless of fluctuating inlet supply conditions up to 250 psi. The unitized, non-corroding cartridge houses all working components, including the fabric-reinforced diaphragm and stainless steel internals, facilitating rapid field service and reducing downtime. For system diagnostics, 1/4" NPT gauge taps are conveniently located on both sides of the valve body. Whether you are performing a new PRV installation or replacing an existing Resideo Braukmann unit, this 2-inch pressure reducing valve ensures code-compliant, low-lead performance for demanding mechanical specifications.
Key Benefits for the Contractor:- Internal and External Threading: Versatile design supports thread-by-thread, single-union, or double-union configurations for flexible piping layouts.
- Integrated Dial-Set: Simplifies the commissioning process with a calibrated adjustment dial (+/- 4 psi accuracy) for rapid static pressure setting.
- Unitized Cartridge: All functional components are contained in a single, replaceable module to streamline maintenance and eliminate the need for complete valve removal.
- Lead-Free Compliance: Meets strict potable water standards including ASSE 1003, CSA B356, and IAPMO/UPC requirements.
- Built-In Strainer: Protects internal valve components and downstream equipment from debris, significantly reducing the risk of call-backs.
Do I need a pressure gauge to set the DS06-105-SUT-LF?
The integrated Dial-Set allows for accurate static pressure adjustment without a gauge. However, the 1/4" NPT dual taps remain available for validating dynamic flow pressure or meeting specific local inspection requirements.
Can this 2-inch PRV be installed in a vertical orientation?
While horizontal installation with the bonnet facing upward is the industry standard to prevent sediment buildup, models up to 2 inches can be installed vertically. Ensure the system is adequately flushed to prevent debris from fouling the stainless steel seat.
Is this valve suitable for high-pressure municipal mains?
Yes, the bronze body construction is rated for a maximum inlet pressure of 250 psi and offers a 10:1 maximum reduction ratio, making it ideal for stabilizing high municipal supply pressures for residential or commercial use.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
