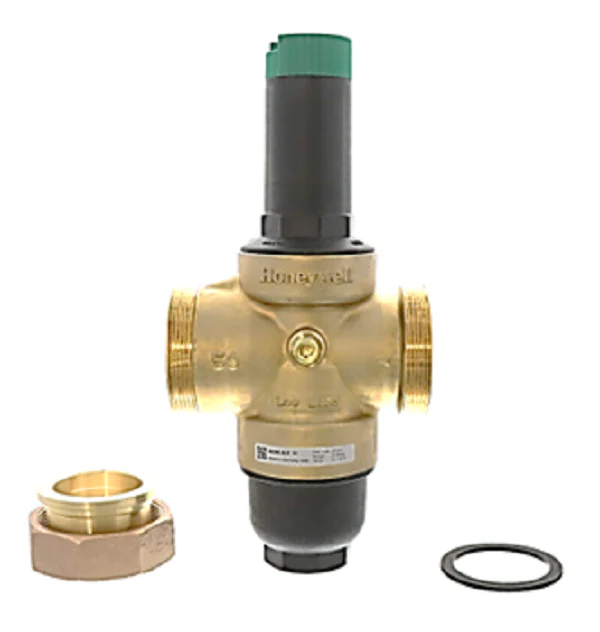

Resideo DS06-105-SUS-LF Pressure Regulating Valve
The Resideo DS06-105-SUS-LF is a heavy-duty, 2-inch pressure regulating valve engineered for precise downstream control in high-demand potable water and irrigation systems. Built with a lead-free bronze body and stainless steel internals, this DialSet PRV allows for rapid outlet pressure adjustments between 25 and 90 psi via a calibrated scale, eliminating the need for a temporary gauge during setup. Designed to handle a maximum inlet pressure of 250 psi, it utilizes a balanced cartridge design to ensure stable regulation despite fluctuating supply pressures. The single-union sweat connection and internal FPT threading simplify integration into 2" copper or iron pipe runs. For long-term reliability in the field, it features a built-in strainer and a non-corroding unitized cartridge that houses all critical moving parts, facilitating fast maintenance and reducing system downtime for contractors on-site.
Key Benefits- Precise Pressure Control: Integrated calibrated dial allows for accurate static pressure settings without external diagnostic tools.
- Durable Construction: High-grade lead-free bronze body with a fabric-reinforced diaphragm ensures compatibility with potable water systems.
- Maintenance Efficiency: Unitized cartridge design and integrated 0.040-inch strainer screen simplify cleaning and internal component replacement.
- System Versatility: Dual 1/4" NPT gauge taps (inlet and outlet sides) allow for permanent monitoring of water pressure regulation.
- Balanced Seat Design: Minimizes the impact of varying inlet pressures to maintain a constant, safe downstream environment.
Does this valve require a gauge for installation?
No, the DialSet technology includes a calibrated adjustment knob that allows you to set the desired outlet pressure directly. However, the 1/4" NPT ports are available if you need to verify system pressure with a permanent gauge.
Is this unit compatible with high-temperature water lines?
The DS06-105-SUS-LF is rated for a maximum fluid temperature of 140°F, making it suitable for cold and lukewarm potable water applications, but it is not intended for high-temperature steam or hydronic heating loops.
How do I service the internal components?
The valve features a unitized cartridge. Once the system is depressurized, you can remove the bonnet to pull the entire cartridge assembly for cleaning or replacement without removing the valve body from the pipeline.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $605.78
-65%$605.78
$212.02Resideo DS06-105-SUS-LF Pressure Regulating Valve
The Resideo DS06-105-SUS-LF is a heavy-duty, 2-inch pressure regulating valve engineered for precise downstream control in high-demand potable water and irrigation systems. Built with a lead-free bronze body and stainless steel internals, this DialSet PRV allows for rapid outlet pressure adjustments between 25 and 90 psi via a calibrated scale, eliminating the need for a temporary gauge during setup. Designed to handle a maximum inlet pressure of 250 psi, it utilizes a balanced cartridge design to ensure stable regulation despite fluctuating supply pressures. The single-union sweat connection and internal FPT threading simplify integration into 2" copper or iron pipe runs. For long-term reliability in the field, it features a built-in strainer and a non-corroding unitized cartridge that houses all critical moving parts, facilitating fast maintenance and reducing system downtime for contractors on-site.
Key Benefits- Precise Pressure Control: Integrated calibrated dial allows for accurate static pressure settings without external diagnostic tools.
- Durable Construction: High-grade lead-free bronze body with a fabric-reinforced diaphragm ensures compatibility with potable water systems.
- Maintenance Efficiency: Unitized cartridge design and integrated 0.040-inch strainer screen simplify cleaning and internal component replacement.
- System Versatility: Dual 1/4" NPT gauge taps (inlet and outlet sides) allow for permanent monitoring of water pressure regulation.
- Balanced Seat Design: Minimizes the impact of varying inlet pressures to maintain a constant, safe downstream environment.
Does this valve require a gauge for installation?
No, the DialSet technology includes a calibrated adjustment knob that allows you to set the desired outlet pressure directly. However, the 1/4" NPT ports are available if you need to verify system pressure with a permanent gauge.
Is this unit compatible with high-temperature water lines?
The DS06-105-SUS-LF is rated for a maximum fluid temperature of 140°F, making it suitable for cold and lukewarm potable water applications, but it is not intended for high-temperature steam or hydronic heating loops.
How do I service the internal components?
The valve features a unitized cartridge. Once the system is depressurized, you can remove the bonnet to pull the entire cartridge assembly for cleaning or replacement without removing the valve body from the pipeline.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
