Resideo DS06-105-DUS-LF Pressure Regulating Valve

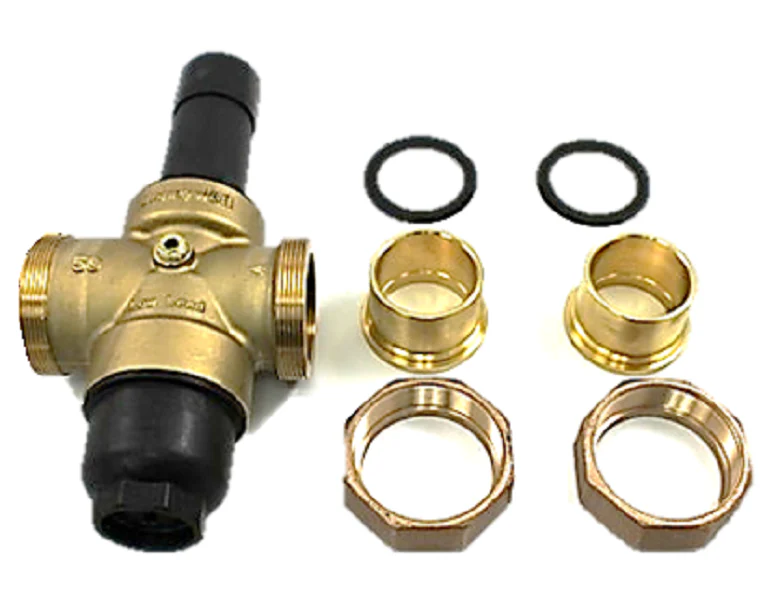

The Resideo DS06-105-DUS-LF is a professional-grade 2-inch pressure regulating valve designed to stabilize downstream pressure in high-demand potable water and irrigation systems. Built with a heavy-duty bronze body and a balanced seat construction, this DialSet pressure regulator ensures consistent outlet pressure even when facing significant fluctuations in the 250 psi maximum inlet supply. For contractors, the primary advantage is the factory-calibrated adjustment dial, which allows for precise reduced pressure range settings between 25 and 90 psi without the immediate need for a standing pressure gauge. The unit features 2" FPT double union sweat connections, facilitating rapid installation and easy serviceability. Internally, the unitized cartridge—containing the fabric reinforced diaphragm, stainless steel components, and engineered thermoplastics—is fully replaceable, allowing for complete mechanical overhauls without removing the valve body from the main line.
Key Benefits- Simplified Calibration: The integrated DialSet adjustment knob allows for set-and-forget pressure control, saving time during system commissioning.
- Debris Protection: Includes a built-in stainless steel strainer to protect downstream fixtures from sediment and scale buildup.
- Lead-Free Compliance: Fully compliant with potable water standards, utilizing lead-free bronze to meet strict safety regulations.
- Versatile Monitoring: Dual 1/4" NPT gauge taps on both sides of the body allow for easy verification of inlet and outlet pressures.
- Thermal Expansion Support: The balanced single seat design naturally accounts for thermal expansion properties within the plumbing loop.
How do I adjust the outlet pressure on the DS06-105-DUS-LF?
Loosen the locking screw on the top dial and turn the green adjustment knob until the indicator aligns with your desired psi. Note that for downward adjustments, a small amount of downstream flow is required to relieve backpressure.
Can the internal cartridge be serviced without cutting the pipe?
Yes. The noncorroding unitized cartridge design contains all moving parts. Simply close the supply, relieve downstream pressure, and unscrew the bonnet to swap the cartridge assembly.
Is this valve suitable for high-temperature applications?
This model is rated for a maximum fluid temperature of 140°F, making it ideal for standard domestic hot water and cold water master pressure regulation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $667.69
-65%$667.69
$233.69Resideo DS06-105-DUS-LF Pressure Regulating Valve
The Resideo DS06-105-DUS-LF is a professional-grade 2-inch pressure regulating valve designed to stabilize downstream pressure in high-demand potable water and irrigation systems. Built with a heavy-duty bronze body and a balanced seat construction, this DialSet pressure regulator ensures consistent outlet pressure even when facing significant fluctuations in the 250 psi maximum inlet supply. For contractors, the primary advantage is the factory-calibrated adjustment dial, which allows for precise reduced pressure range settings between 25 and 90 psi without the immediate need for a standing pressure gauge. The unit features 2" FPT double union sweat connections, facilitating rapid installation and easy serviceability. Internally, the unitized cartridge—containing the fabric reinforced diaphragm, stainless steel components, and engineered thermoplastics—is fully replaceable, allowing for complete mechanical overhauls without removing the valve body from the main line.
Key Benefits- Simplified Calibration: The integrated DialSet adjustment knob allows for set-and-forget pressure control, saving time during system commissioning.
- Debris Protection: Includes a built-in stainless steel strainer to protect downstream fixtures from sediment and scale buildup.
- Lead-Free Compliance: Fully compliant with potable water standards, utilizing lead-free bronze to meet strict safety regulations.
- Versatile Monitoring: Dual 1/4" NPT gauge taps on both sides of the body allow for easy verification of inlet and outlet pressures.
- Thermal Expansion Support: The balanced single seat design naturally accounts for thermal expansion properties within the plumbing loop.
How do I adjust the outlet pressure on the DS06-105-DUS-LF?
Loosen the locking screw on the top dial and turn the green adjustment knob until the indicator aligns with your desired psi. Note that for downward adjustments, a small amount of downstream flow is required to relieve backpressure.
Can the internal cartridge be serviced without cutting the pipe?
Yes. The noncorroding unitized cartridge design contains all moving parts. Simply close the supply, relieve downstream pressure, and unscrew the bonnet to swap the cartridge assembly.
Is this valve suitable for high-temperature applications?
This model is rated for a maximum fluid temperature of 140°F, making it ideal for standard domestic hot water and cold water master pressure regulation.
