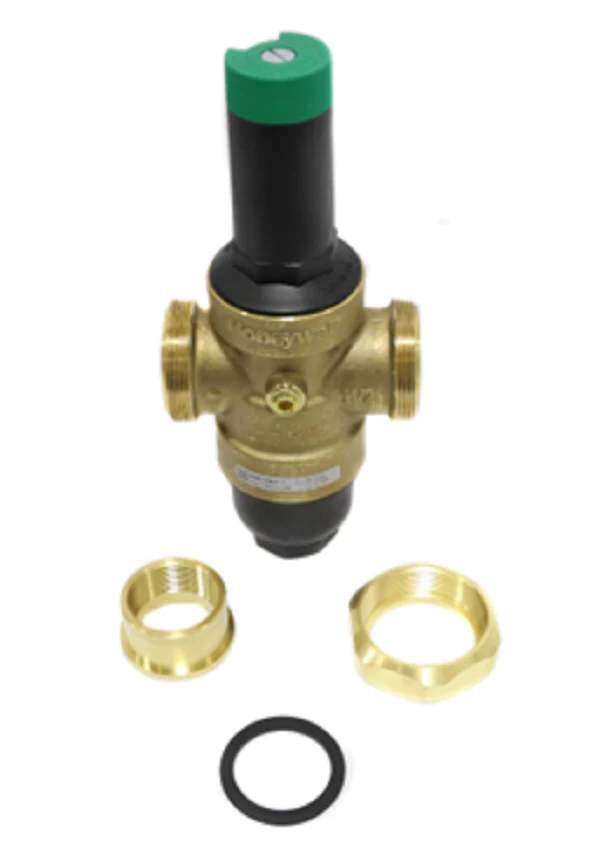

Resideo DS06-104-SUT-LF Pressure Regulating Valve
The Resideo DS06-104-SUT-LF is a professional-grade 1-1/2 inch DialSet pressure regulating valve engineered for precise downstream control in high-demand potable water and irrigation systems. This lead-free water pressure regulator features an integrated, calibrated adjustment dial that allows contractors to set static pressure between 25 and 90 psi without the immediate requirement of a pressure gauge. Built with a rugged bronze body and a balanced single seat construction, the valve maintains consistent outlet pressure despite fluctuating inlet supply reaching up to 250 psi. The unitized cartridge architecture simplifies field service, as all working parts—including the fabric-reinforced diaphragm and stainless steel internal components—are contained within a non-corroding, replaceable insert. Designed for versatility, the DS06-104-SUT-LF includes single-union FPT connections and dual 1/4-inch NPT gauge taps, ensuring seamless integration into commercial or industrial piping layouts while meeting ASSE 1003 and CSA B356 compliance standards.
Key Benefits:- Simplified Calibration: Integrated DialSet adjustment allows for rapid pressure setting without external gauges during initial installation.
- Operational Stability: High-performance balanced cartridge design mitigates the effects of inlet pressure variations and supports thermal expansion properties.
- Debris Protection: Features a built-in stainless steel strainer to prevent particulates from damaging downstream fixtures and the valve seat.
- Contractor-Friendly Maintenance: The unitized cartridge design allows for full serviceability without removing the valve body from the line.
- Broad Compatibility: Engineered with internally threaded NPT and externally threaded union connections for flexible mounting in tight mechanical spaces.
Does this valve require a gauge for pressure adjustment?
While the dial-set pressure regulator is factory-calibrated for set-and-forget static pressure adjustment, two 1/4-inch NPT gauge taps are provided to verify dynamic flow pressure and system performance.
Is the DS06-104-SUT-LF suitable for hot water applications?
This specific model is rated for a maximum operating temperature of 140°F (60°C), making it ideal for potable water service and standard irrigation requirements.
How does the 10:1 reducing ratio impact system design?
The 10:1 maximum reduction ratio ensures the valve can safely drop a 250 psi inlet to a stable 25 psi outlet, though for extreme pressure drops, two-stage regulation should be evaluated by the site engineer.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
