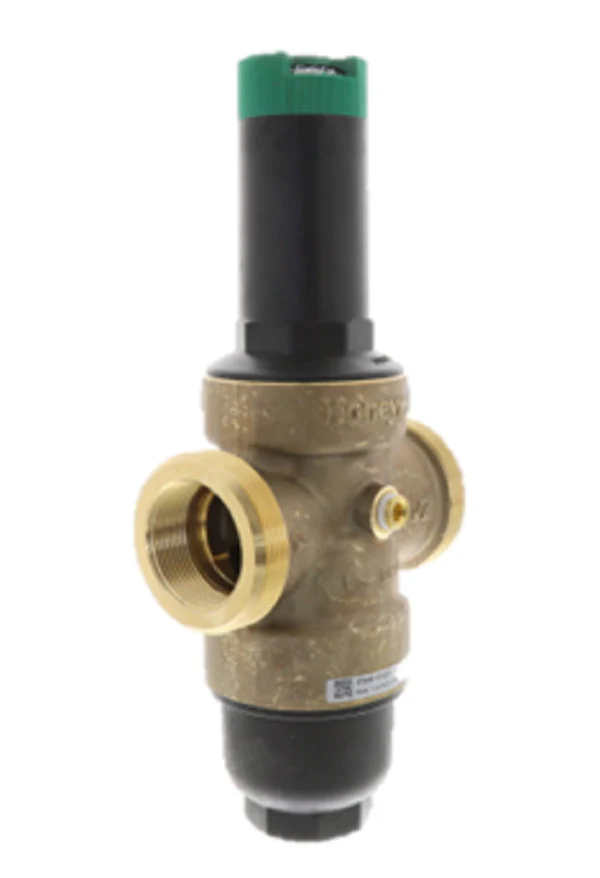

Resideo DS06-104-LF Valve
The Resideo DS06-104-LF DialSet Pressure Regulating Valve is a lead-free, high-capacity water pressure control solution designed for 1-1/2 inch commercial and residential plumbing systems. Engineered with a balanced seat design, this PRV maintains a consistent outlet pressure regardless of fluctuating inlet pressures, preventing hydraulic shock and reducing water noise. The integrated adjustment dial allows for manual calibration between 25 and 90 psi without requiring a separate pressure gauge, making it a preferred choice for contractors managing high-flow applications. Constructed with a lead-free brass body and featuring a built-in stainless steel strainer, the DS06-104-LF Valve protects downstream components from debris and excessive pressure wear. This model utilizes a union connection for simplified installation and maintenance in tight mechanical rooms. For technicians seeking a reliable static pressure regulator that meets NSF/ANSI 61 and 372 standards, the DS06 series provides the durability needed for demanding domestic water services.
Key Performance Benefits
- Adjustable Pressure Range: Convenient dial-set mechanism permits field adjustments from 25 to 90 psi to meet specific site requirements.
- Balanced Single Seat: Ensures that high-side variations do not affect discharge pressure, stabilizing the entire plumbing manifold.
- Lead-Free Construction: Complies with low-lead regulations, making it suitable for all potable water installations.
- Integrated Filtration: The internal 100-micron stainless steel strainer prevents sediment from fouling the valve seat or downstream fixtures.
- Serviceable Cartridge: The entire internal valve mechanism is contained within a single unit for rapid field replacement or cleaning.
Common Installation Questions
What is the maximum inlet pressure rating for the DS06-104-LF?
This 1-1/2 inch unit is rated for a maximum inlet pressure of up to 400 psi, though optimal performance is achieved when following standard reduction ratios.
Can this pressure regulating valve be installed in any orientation?
The DS06 series is designed for versatile mounting, permitting installation in both horizontal and vertical piping configurations without compromising regulation accuracy.
Does the DS06-104-LF require a pressure gauge for setup?
While a downstream gauge is always recommended for final verification, the built-in adjustment dial is factory-calibrated to allow for accurate set-point selection during the rough-in phase.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
