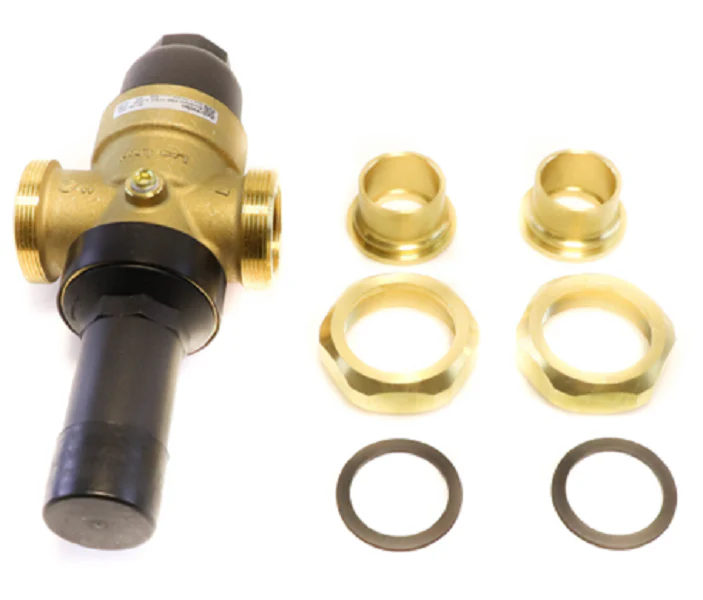

Resideo DS06-104-DUS-LF Pressure Regulating Valve
The Resideo DS06-104-DUS-LF is a high-performance 1 1/2 inch pressure regulating valve designed to maintain consistent downstream pressure in high-demand potable water and irrigation systems. Built with a rugged bronze body and a fabric-reinforced diaphragm, this lead-free valve handles a 250 PSI maximum inlet pressure and offers an adjustable outlet pressure range of 25-90 PSI. The integrated Dial-Set technology allows for precise static pressure calibration without the need for an external gauge, significantly reducing setup time for technicians. The double union sweat connection and unitized non-corroding cartridge facilitate rapid installation and streamlined maintenance. Utilizing stainless steel and engineered thermoplastics for internal components, the Braukmann DS06 DialSet ensures long-term reliability in commercial and residential potable water applications. Dual 1/4 inch NPT gauge taps are provided on both sides of the body to allow for convenient pressure verification during system commissioning.
Key Benefits- Dial-Set Calibration: Built-in adjustment dial enables accurate static pressure settings without requiring a separate pressure gauge.
- Unitized Cartridge: Contains all moving parts in a single, non-corroding assembly for simplified field replacement.
- Installation Versatility: Features double union sweat ends with internal/external threading to accommodate varied plumbing configurations.
- High Flow Performance: Specialized 1 1/2 inch FPT design maintains stable output even during significant inlet supply fluctuations.
- Lead-Free Compliance: Meets all current plumbing standards for potable water safety with high-grade bronze construction.
How do I adjust the outlet pressure on the DS06-104-DUS-LF?
Loosen the locking screw on the dial and turn the adjustment knob to the desired PSI marked on the scale. Once set, tighten the screw to lock the pressure setting. For the most accurate dynamic reading, use the 1/4 inch NPT gauge taps.
Can the internal parts be serviced without removing the valve body?
Yes, the unitized cartridge system allows technicians to replace the diaphragm, valve seat, and strainer assembly as a single unit without disconnecting the PRV from the main line.
Is this valve suitable for systems with high thermal expansion?
While the fabric-reinforced diaphragm and balanced seat construction provide stability, an expansion tank is recommended in closed systems to manage thermal expansion alongside the pressure regulating valve.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $419.15
-65%$419.15
$146.70Resideo DS06-104-DUS-LF Pressure Regulating Valve
The Resideo DS06-104-DUS-LF is a high-performance 1 1/2 inch pressure regulating valve designed to maintain consistent downstream pressure in high-demand potable water and irrigation systems. Built with a rugged bronze body and a fabric-reinforced diaphragm, this lead-free valve handles a 250 PSI maximum inlet pressure and offers an adjustable outlet pressure range of 25-90 PSI. The integrated Dial-Set technology allows for precise static pressure calibration without the need for an external gauge, significantly reducing setup time for technicians. The double union sweat connection and unitized non-corroding cartridge facilitate rapid installation and streamlined maintenance. Utilizing stainless steel and engineered thermoplastics for internal components, the Braukmann DS06 DialSet ensures long-term reliability in commercial and residential potable water applications. Dual 1/4 inch NPT gauge taps are provided on both sides of the body to allow for convenient pressure verification during system commissioning.
Key Benefits- Dial-Set Calibration: Built-in adjustment dial enables accurate static pressure settings without requiring a separate pressure gauge.
- Unitized Cartridge: Contains all moving parts in a single, non-corroding assembly for simplified field replacement.
- Installation Versatility: Features double union sweat ends with internal/external threading to accommodate varied plumbing configurations.
- High Flow Performance: Specialized 1 1/2 inch FPT design maintains stable output even during significant inlet supply fluctuations.
- Lead-Free Compliance: Meets all current plumbing standards for potable water safety with high-grade bronze construction.
How do I adjust the outlet pressure on the DS06-104-DUS-LF?
Loosen the locking screw on the dial and turn the adjustment knob to the desired PSI marked on the scale. Once set, tighten the screw to lock the pressure setting. For the most accurate dynamic reading, use the 1/4 inch NPT gauge taps.
Can the internal parts be serviced without removing the valve body?
Yes, the unitized cartridge system allows technicians to replace the diaphragm, valve seat, and strainer assembly as a single unit without disconnecting the PRV from the main line.
Is this valve suitable for systems with high thermal expansion?
While the fabric-reinforced diaphragm and balanced seat construction provide stability, an expansion tank is recommended in closed systems to manage thermal expansion alongside the pressure regulating valve.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
