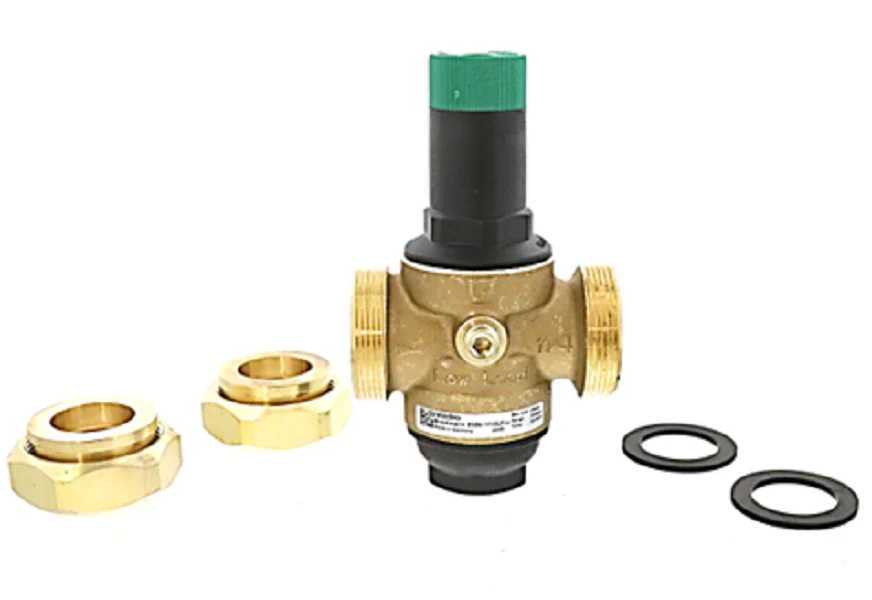

Resideo DS06-103-DUT-LF Pressure Regulating Valve
The Resideo DS06-103-DUT-LF is a professional-grade 1-1/4 inch DialSet pressure regulating valve engineered for precision water pressure management in residential and commercial plumbing systems. Built with a lead-free bronze body, this balanced single-seat PRV utilizes a fabric-reinforced diaphragm and high-grade stainless steel internal components to maintain a consistent downstream pressure regardless of fluctuating municipal supply. The DS06-103-DUT-LF features a unique calibrated DialSet adjustment mechanism, allowing technicians to set the desired 25-90 PSI adjustable outlet pressure without the need for a pressure gauge during static conditions. The heavy-duty double union FPT (Female Pipe Thread) connections facilitate rapid installation and service, while the 250 PSI maximum inlet rating ensures reliability in demanding high-pressure environments. An integrated 1/4 inch NPT gauge tap and a built-in fine mesh strainer provide essential diagnostic and maintenance points for long-term system protection of potable water lines.
- No-Gauge Calibration: The integrated DialSet allows for immediate pressure adjustment, saving time on the job site during initial static pressure setup.
- Lead-Free Reliability: Constructed from lead-free bronze and engineered thermoplastics to meet strict potable water safety regulations (ASSE 1003 and CSA B356).
- Modular Maintenance: Features a non-corroding unitized cartridge that houses all working parts, making repairs possible without removing the valve body from the main line.
- Thermal Expansion Protection: The balanced cartridge design naturally accommodates thermal expansion, reducing stress on downstream pipe fittings and fixtures.
Common Questions
Does this valve require a gauge for installation?
While the DS06-103-DUT-LF features an integrated calibrated dial for setting static pressure, there are dual 1/4 inch NPT taps available on the body to verify dynamic outlet pressure if required by local codes.
Is the strainer replaceable?
Yes, the internal stainless steel strainer is easily accessible. Regularly cleaning the strainer prevents debris from fouling the pressure regulator seat and ensures consistent flow rates.
Can this PRV be installed in any orientation?
The Resideo Braukmann DS06 series is designed for versatile mounting, but it is best practice to install it in a horizontal position with the adjustment dial facing upward for easiest access.
