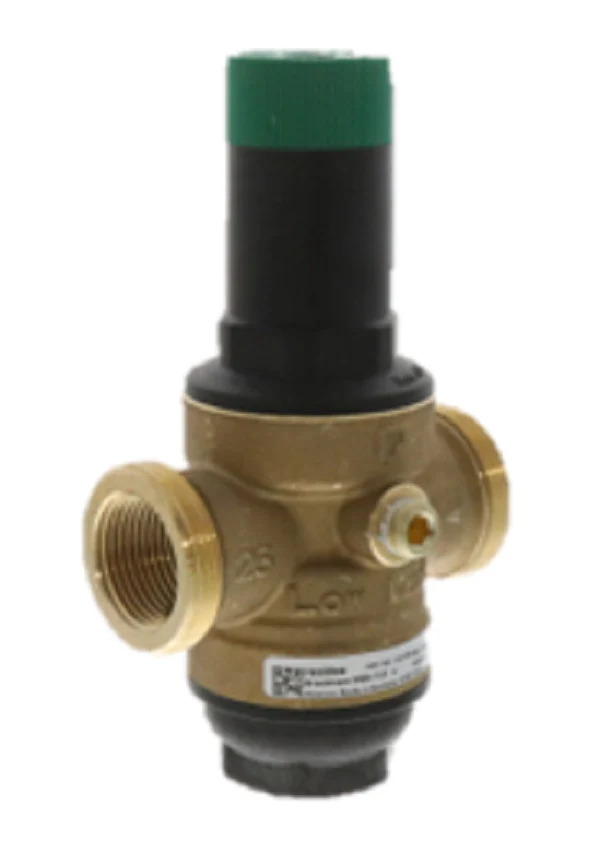

Resideo DS06-102-SUT-LF Valve
The Resideo DS06-102-SUT-LF Valve is a professional-grade 1" DialSet Pressure Regulating Valve designed for precise downstream control in residential and commercial potable water systems. Built with a heavy-duty, lead-free bronze body and a fabric-reinforced diaphragm, this valve handles a 250 PSI maximum inlet pressure while allowing for a wide 25-90 PSI adjustable outlet pressure range. Unlike standard regulators, the DialSet technology features a calibrated adjustment dial that enables technicians to set the desired static pressure without the immediate need for a gauge during installation.
Engineered for serviceability, the DS06-102-SUT-LF utilizes a noncorroding unitized cartridge that houses all internal working parts, including the stainless steel seat and built-in strainer. This 1-inch FPT single union model is internally threaded for versatile mounting configurations and provides dual 1/4" NPT gauge taps for easy system verification. This unit serves as the direct replacement for the legacy 36-205-02 model and is fully compliant with low-lead standards, ensuring reliable performance in any potable water application.
Key Benefits- Simplified Pressure Control: Integrated DialSet allows for manual calibration of static pressure without external tools or gauges.
- Debris Protection: Built-in stainless steel strainer prevents particulate damage to the balanced single seat construction.
- Field-Replaceable Internals: The unitized cartridge design facilitates rapid maintenance without pulling the entire bronze valve body from the line.
- Thermal Expansion Compatibility: Balanced design manages pressure fluctuations effectively, protecting downstream fixtures from potable water surges.
- Robust Material Selection: High-grade engineered thermoplastics and stainless steel components provide long-term resistance to mineral buildup.
Can I install this valve in any orientation?
Yes, the DS06-102-SUT-LF is designed for high installation flexibility and can be mounted horizontally or vertically, provided the flow direction matches the arrow on the valve body.
Does this valve require a gauge for initial setup?
While the calibrated dial allows for accurate static pressure settings, a gauge installed via the 1/4" NPT tap is recommended to confirm dynamic pressure performance during high flow conditions.
Is this model compatible with hot water lines?
This pressure regulator is rated for fluid temperatures up to 140°F, making it suitable for standard domestic hot water and cold water supply lines.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
