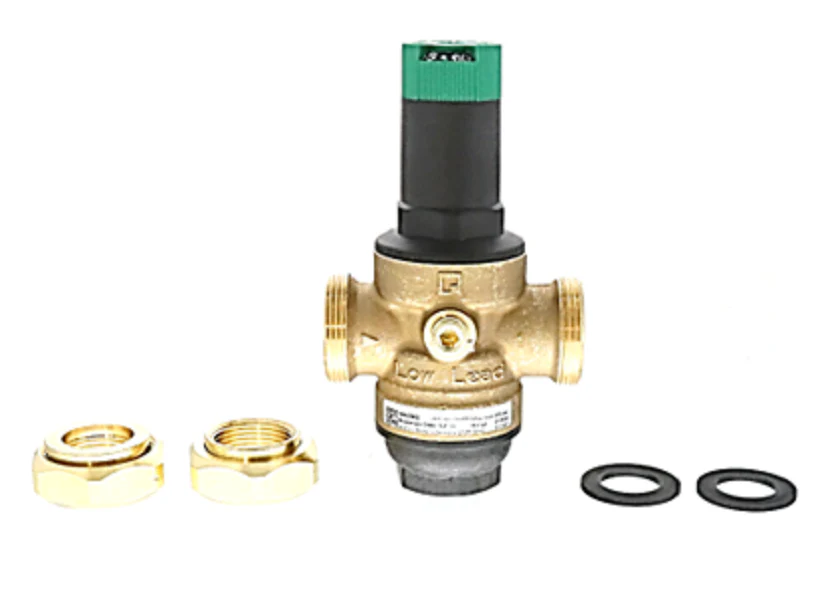

Resideo DS06-102-DUT-LF Pressure Regulating Valve
The Resideo DS06-102-DUT-LF is a professional-grade 1" FPT double union pressure regulating valve engineered for precision control in low-lead potable water and irrigation systems. Built with a rugged bronze body and a fabric reinforced diaphragm, this lead-free water pressure regulator is designed to handle a 250 PSI maximum inlet pressure while maintaining a steady downstream flow. The integrated Dial-Set technology allows for rapid adjustable outlet pressure between 25 and 90 PSI, eliminating the need for an external gauge during static pressure calibration. Featuring a non-corroding unitized cartridge and a built-in strainer, the DS06-102-DUT-LF simplifies maintenance by housing all working parts in a single replaceable component. Dual 1/4" NPT gauge taps provide accessible ports for secondary verification. This balanced seat valve offers a 10:1 reducing ratio, delivering consistent performance for high-demand residential and commercial applications where water pressure reduction is critical.
Key Benefits:- Streamlined Calibration: The calibrated adjustment dial enables precise pressure settings without requiring a separate gauge for installation.
- Lead-Free Reliability: Certified low-lead construction ensures safety and compliance with potable water regulations.
- Modular Design: The replaceable unitized cartridge contains the diaphragm and internal components, allowing for on-site repairs without removing the valve body from the line.
- High Pressure Ratings: Rated for 250 PSI inlet pressure, making it suitable for volatile supply lines and municipal water main fluctuations.
- Debris Protection: An internal stainless steel strainer traps particulates to prevent fouling of the valve seat and downstream equipment.
Does this valve require a gauge for pressure adjustment?
While the DS06 DialSet features a calibrated dial for setting static pressure without a gauge, 1/4" NPT gauge taps are provided on both sides to allow technicians to verify dynamic pressure or monitor system performance.
Can the cartridge be replaced without cutting the pipe?
Yes, the unitized cartridge design and double union connections allow for easy access and replacement of all moving parts and the strainer while the valve body remains in place.
What is the maximum operating temperature for this PRV?
This potable water pressure regulator is rated for a maximum operating temperature of 140°F, making it suitable for cold and lukewarm domestic water services.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
