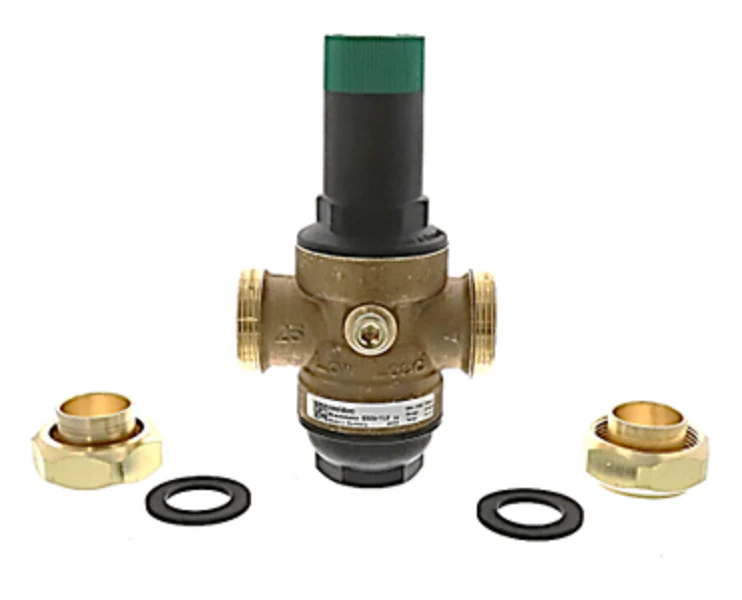

Resideo DS06-102-DUS-LF Pressure Regulating Valve
The Resideo DS06-102-DUS-LF is a veteran-preferred 1" lead-free water pressure reducing valve engineered for precision control in potable water and irrigation systems. Built with a heavy-duty bronze body and a fabric-reinforced diaphragm, this Braukmann DialSet valve handles a maximum inlet pressure of 250 PSI. The integrated dial-set adjustment allows for rapid, tool-free calibration of outlet pressures between 25 and 90 PSI, eliminating the standard requirement for a secondary pressure gauge during static setup. It features a balanced single-seat construction and a non-corroding unitized cartridge that houses all moving parts for streamlined field servicing. With 1" FPT double union sweat connections and dual 1/4" NPT gauge taps, this high-flow PRV offers maximum installation flexibility for contractors managing residential or light commercial water mains. This Resideo pressure regulator ensures consistent downstream pressure despite fluctuating supply, protecting plumbing fixtures and reducing mechanical stress across the system.
Key Benefits- Simplified Calibration: The calibrated adjustment dial enables setting the reduced pressure without a gauge, saving time during commissioning.
- Serviceable Design: The unitized cartridge allows for the replacement of internal components, including the stainless steel seat and diaphragm, without removing the valve body from the line.
- Advanced Filtration: An integral built-in strainer protects the valve seat from debris, ensuring long-term seat integrity and preventing pressure creep.
- Lead-Free Compliance: Certified to NSF/ANSI 61 and 372, meeting all domestic potable water standards for safe operation.
- Versatile Connection: Outfitted with 1-inch double union sweat fittings for reliable, leak-free integration into copper piping systems.
Does this PRV require a pressure gauge for installation?
While the DS06-102-DUS-LF features dual 1/4" NPT gauge taps for verification, the built-in dial-set allows you to accurately set the static outlet pressure without one.
Can the internal cartridge be replaced?
Yes, the non-corroding unitized cartridge is fully replaceable and contains all critical working parts, allowing for fast maintenance in the field.
What is the maximum temperature rating for this valve?
This Resideo PRV is designed for water temperatures up to 140°F (60°C), making it suitable for standard domestic cold-water and tepid-water applications.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
