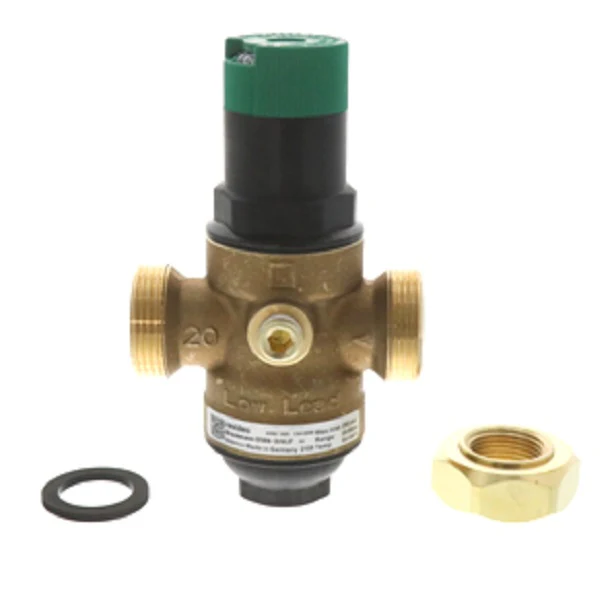

Resideo DS06-101-SUT-LF Valve
The Resideo DS06-101-SUT-LF is a lead-free pressure regulating valve designed for high-performance potable water applications where precision and durability are non-negotiable. Featuring a robust bronze body and a rugged fabric-reinforced diaphragm, this valve is engineered to handle a 250 PSI maximum inlet pressure while providing a wide 25-90 PSI adjustable outlet pressure range. This model utilizes a 3/4" FPT single union internally threaded connection, making it the direct technical replacement for the legacy 36-204-01 part number. The inclusion of a 1/4" NPT gauge tap allows for immediate system pressure verification during commissioning. Built with stainless steel internals and engineered thermoplastics, it maintains consistent static pressure control and flow regulation in demanding residential or light commercial plumbing environments. For contractors, this dial-set regulator simplifies installation by allowing for easy pressure adjustments without requiring the removal of the spring housing.
Key Benefits
- Internal Threaded Union: The 3/4" SUT connection design allows for faster serviceability and simplified piping configurations in tight mechanical spaces.
- Lead-Free Bronze Construction: Ensures full compliance with potable water safety standards and regional plumbing codes for safe drinking water delivery.
- Balanced Valve Seat: Maintains a constant outlet pressure despite fluctuations in the incoming supply, preventing water hammer and protecting downstream appliances.
- Replaceable Insert: The entire regulating mechanism is contained within a single cartridge, allowing for rapid field maintenance without breaking the pipe connections.
Common Questions
Is the DS06-101-SUT-LF a direct drop-in for older Honeywell 36-204-01 valves?
Yes, this model serves as the official replacement for the 36-204-01, maintaining the same thread footprint and pressure handling characteristics for seamless retrofitting.
How do I adjust the pressure on this Resideo PRV?
Adjustments are made by turning the green adjustment knob; clockwise increases the downstream pressure, while counter-clockwise decreases it. The integrated scale allows for setting without a gauge, though the 1/4" tap is provided for high-accuracy calibration.
Can this valve be installed in any orientation?
For optimal performance and ease of maintenance, the valve should be installed in a horizontal run with the spring housing pointing upwards, though it is functional in vertical orientations if necessary.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Resideo DS06-101-SUT-LF Valve
The Resideo DS06-101-SUT-LF is a lead-free pressure regulating valve designed for high-performance potable water applications where precision and durability are non-negotiable. Featuring a robust bronze body and a rugged fabric-reinforced diaphragm, this valve is engineered to handle a 250 PSI maximum inlet pressure while providing a wide 25-90 PSI adjustable outlet pressure range. This model utilizes a 3/4" FPT single union internally threaded connection, making it the direct technical replacement for the legacy 36-204-01 part number. The inclusion of a 1/4" NPT gauge tap allows for immediate system pressure verification during commissioning. Built with stainless steel internals and engineered thermoplastics, it maintains consistent static pressure control and flow regulation in demanding residential or light commercial plumbing environments. For contractors, this dial-set regulator simplifies installation by allowing for easy pressure adjustments without requiring the removal of the spring housing.
Key Benefits
- Internal Threaded Union: The 3/4" SUT connection design allows for faster serviceability and simplified piping configurations in tight mechanical spaces.
- Lead-Free Bronze Construction: Ensures full compliance with potable water safety standards and regional plumbing codes for safe drinking water delivery.
- Balanced Valve Seat: Maintains a constant outlet pressure despite fluctuations in the incoming supply, preventing water hammer and protecting downstream appliances.
- Replaceable Insert: The entire regulating mechanism is contained within a single cartridge, allowing for rapid field maintenance without breaking the pipe connections.
Common Questions
Is the DS06-101-SUT-LF a direct drop-in for older Honeywell 36-204-01 valves?
Yes, this model serves as the official replacement for the 36-204-01, maintaining the same thread footprint and pressure handling characteristics for seamless retrofitting.
How do I adjust the pressure on this Resideo PRV?
Adjustments are made by turning the green adjustment knob; clockwise increases the downstream pressure, while counter-clockwise decreases it. The integrated scale allows for setting without a gauge, though the 1/4" tap is provided for high-accuracy calibration.
Can this valve be installed in any orientation?
For optimal performance and ease of maintenance, the valve should be installed in a horizontal run with the spring housing pointing upwards, though it is functional in vertical orientations if necessary.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
