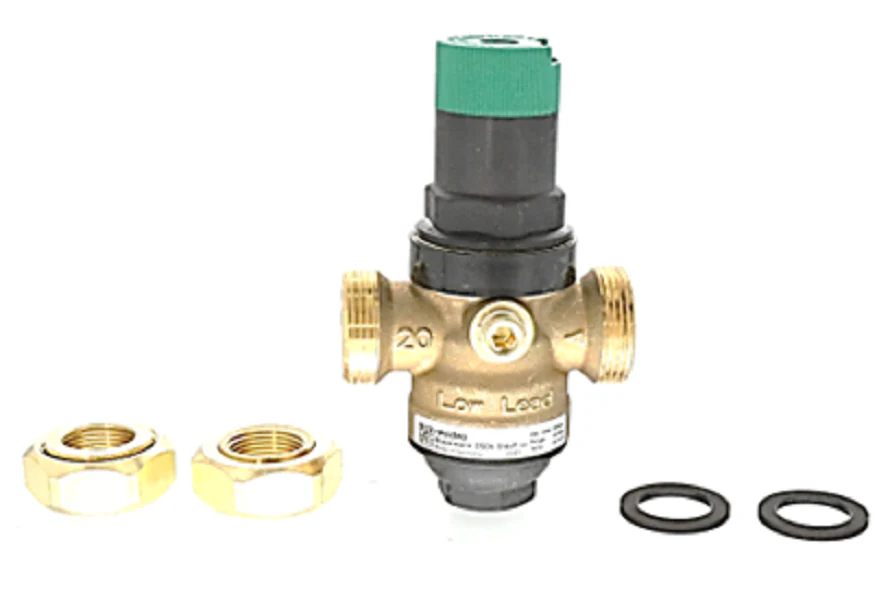

Resideo DS06-101-DUT-LF Pressure Regulating Valve
The Resideo DS06-101-DUT-LF is a professional-grade 3/4 inch pressure regulating valve engineered for precise downstream control in potable water and irrigation systems. Built with a heavy-duty lead-free bronze body, this DialSet PRV utilizes a balanced single-seat construction and a fabric-reinforced diaphragm to maintain consistent outlet pressure despite fluctuating municipal supply. The double-union NPT design simplifies field installation, while the integrated calibrated adjustment dial allows for manual setpoint configuration between 25 and 90 PSI without a dedicated gauge. With a 250 PSI maximum inlet pressure rating and a 1/4 inch NPT gauge tap for verification, this water pressure regulator ensures system protection and noise reduction across residential and commercial applications. The unitized non-corroding cartridge houses all working components, including a built-in strainer, making the DS06-101-DUT-LF a reliable choice for contractors requiring high-flow performance and long-term serviceability.
Key Benefits
- Integrated Dial-Set: Enables fast static pressure adjustment without the need for external gauges.
- Balanced Seat Design: Prevents inlet pressure fluctuations from affecting downstream performance.
- Double Union Connections: 3/4" FPT union fittings provide easy access for maintenance or replacement.
- Serviceable Cartridge: Contains all internal parts, including a stainless steel strainer, in one replaceable unit.
- Potable Water Safe: Lead-free construction meets ASSE 1003 and IAPMO standards for domestic use.
Common Questions
Does this valve require a gauge for setup?
No, the DialSet feature allows you to set the desired outlet pressure directly on the dial, though a 1/4" NPT tap is provided for secondary verification.
Can the internal components be replaced without removing the valve body?
Yes, the unitized cartridge design allows for complete internal servicing while the bronze body remains piped in the line.
Is this PRV suitable for hot water applications?
The DS06-101-DUT-LF is rated for a maximum water temperature of 140°F (60°C).
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
