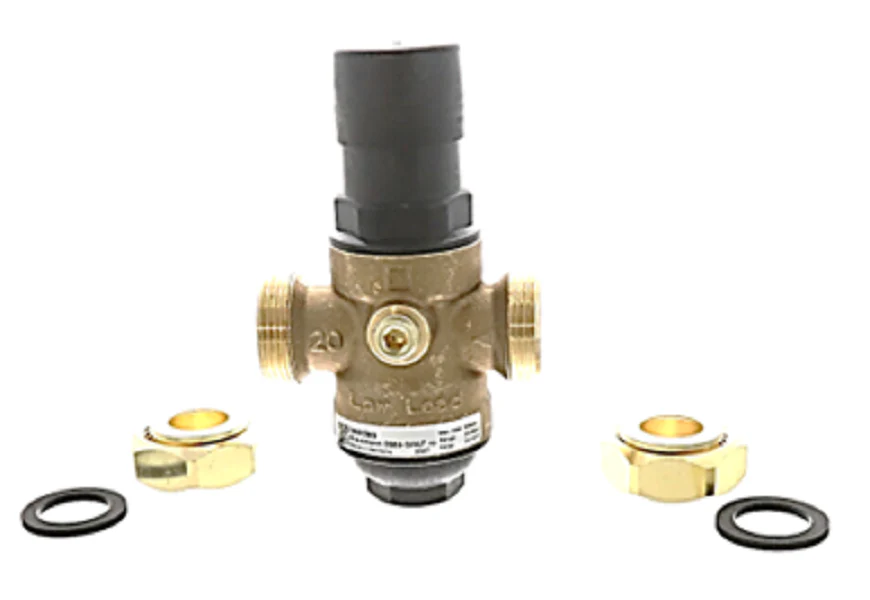

Resideo DS06-101-DUS-LF Pressure Regulating Valve
The Resideo DS06-101-DUS-LF is a professional-grade lead-free pressure regulating valve designed for precision control in potable water systems. Featuring a 3/4 inch FPT double union connection, this bronze body PRV maintains consistent downstream pressure despite fluctuating supply conditions. The integrated DialSet adjustment allows for easy calibration between 25-90 psi without requiring a gauge for static settings, though dual 1/4 inch NPT gauge taps are provided for system monitoring. Built with a fabric reinforced diaphragm and a non-corroding unitized cartridge, this Braukmann pressure regulator is engineered for high-demand residential and commercial plumbing applications. Its balanced single seat design ensures accuracy across a 10:1 reduction ratio, while the stainless steel and engineered thermoplastic internals offer superior durability against high velocity flow and mineral buildup, making it a reliable solution for preventing pipe noise and protecting downstream fixtures.
Key Benefits
- Precision Pressure Management: Easily adjust outlet pressure via the calibrated dial, supporting a range of 25 to 90 psi.
- Lead-Free Reliability: Constructed with lead-free bronze to meet stringent potable water safety standards.
- Simplified Maintenance: The unitized cartridge housing all moving parts can be replaced without removing the valve body from the line.
- Debris Protection: Includes a built-in stainless steel strainer to protect the valve seat and extend system life.
- Universal Fit: Compact design with double union FPT connections facilitates fast installation in tight mechanical spaces.
Common Questions
Can the outlet pressure be set higher than the factory 60 psi?
Yes, the Resideo DS06-101-DUS-LF is field-adjustable. Using the DialSet knob, the pressure can be increased up to 90 psi, provided the inlet pressure is at least 15 psi higher than the desired setting.
What is the maximum temperature rating for this valve?
This pressure regulating valve is rated for a maximum water temperature of 140°F, making it ideal for standard domestic cold water and tempered irrigation lines.
Does this PRV handle thermal expansion?
Yes, the balanced cartridge design permits thermal expansion for properties within the system, although a dedicated expansion tank is recommended for full system protection.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
