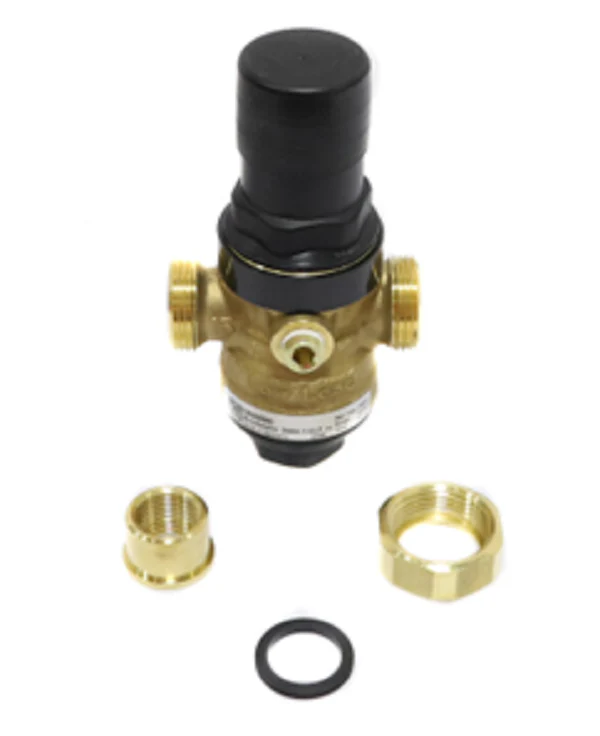

Resideo DS06-100-SUT-LF Pressure Regulating Valve
The Resideo DS06-100-SUT-LF is a 1/2" NPT pressure regulating valve engineered for precision water pressure management in residential and commercial plumbing systems. This lead-free pressure reducing valve features the Braukmann DialSet technology, allowing for onsite downstream pressure adjustments via a calibrated dial without requiring an external gauge for setup. Built with a robust bronze body and fabric-reinforced diaphragm, the DS06-100-SUT-LF handles a maximum inlet pressure of 250 psi while providing an adjustable outlet range of 25 to 90 psi. This Resideo potable water regulator utilizes a balanced cartridge design which stabilizes outlet pressure despite high inlet fluctuations and accommodates thermal expansion. The unitized cartridge includes all working parts, including the built-in strainer, simplifying maintenance for field technicians. With ASSE 1003 and IAPMO certifications, this lead-free brass water valve ensures compliance with strict potable water standards while the single union NPT connection facilitates rapid installation in tight mechanical spaces.
Key Benefits- Calibration Simplicity: The integrated DialSet adjustment allows for rapid water pressure setting without the need for additional test gauges.
- Maintenance Efficiency: Features a non-corroding, unitized cartridge that contains all critical internal components for quick PRV cartridge replacement.
- Durable Construction: High-grade bronze body and stainless steel internal parts resist dezincification and ensure long-term reliability in varying water conditions.
- Enhanced Protection: Built-in stainless steel mesh strainer protects internal mechanics and downstream fixtures from sediment and debris.
- Versatile Application: Suitable for potable water, irrigation, and industrial applications with a high 10:1 reducing ratio capability.
Is a pressure gauge required to set this valve?
No, the Resideo DS06-100-SUT-LF features a calibrated dial that permits static pressure adjustment. A 1/4" NPT gauge tap is available on both sides if verification of dynamic flow pressure is required.
Can this valve be installed in any orientation?
For optimal performance, it is recommended to install the valve in horizontal piping with the filter bowl facing downward; however, vertical installation is supported where space is limited.
What certifications does this valve hold for lead safety?
The "LF" designation indicates lead-free construction, and the valve is compliant with NSF/ANSI 61 and 372 standards, as well as ASSE 1003 and CSA B356.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
