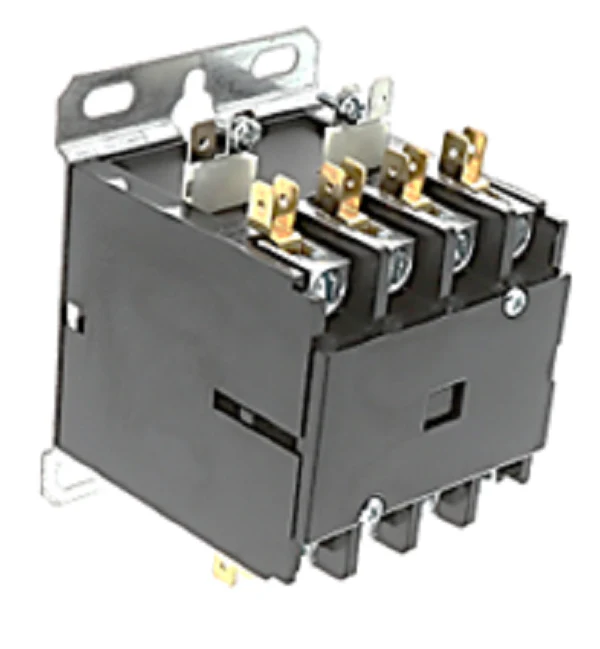

Resideo DP4040B5001 Contactor
The Resideo DP4040B5001 is a 4-pole definite purpose contactor engineered for heavy-duty switching in commercial and industrial HVACR systems. Built for across-the-line starting of induction motors, this PowerPro contactor features a 120V coil and is rated for a 40 Amp inductive load (50 Amp resistive), providing a robust solution for multi-circuit control. The silver cadmium oxide contacts are designed for durability and consistent conductivity, minimizing arc erosion during frequent cycling. With a -4°F to 149°F temperature range, this unit maintains reliable operation in demanding mechanical rooms and outdoor enclosures. For field installation, the DP4040B5001 utilizes dual-head termination with 1/4" quick connects and #6 screws, and it includes universal mounting slots to ensure compatibility with standard industry footprints. This model is also A2L refrigerant compliant, making it a future-proof choice for modern cooling applications requiring 120Vac control circuitry.
Key Benefits- Versatile 4-Pole Configuration: Allows for simultaneous switching of four separate circuits or the neutral line in 3-phase applications.
- High Current Rating: Handles up to 40 Amp Full Load Amps (FLA) and 50 Amp resistive loads for high-power motors and heaters.
- Easy Installation: Features multiple mounting holes and universal slots for fast interchangeability with existing contactors.
- Reliable Performance: Equipped with silver cadmium oxide contacts to provide superior arc resistance and extend service life.
- Refrigerant Ready: Fully compliant with A2L refrigerants, adhering to the latest environmental and safety standards for HVACR technicians.
What is the difference between the 40A inductive and 50A resistive rating?
The 40 Amp rating applies to inductive loads like compressors or fans where there is a high inrush current, while the 50 Amp rating applies to resistive heating elements with steady current draw.
Can I use this contactor to replace a 3-pole model?
Yes, provided the 120V coil voltage and amperage match. The 4th pole can be used as an auxiliary circuit or left unused, while the universal mounting base fits most standard 3-pole footprints.
Are the coil terminals compatible with standard wire connectors?
Absolutely. The DP4040B5001 uses a combination of 1/4" male quick connects and #6 binding head screws for secure termination of both control and power wiring.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $91.05
-65%$91.05
$31.87Resideo DP4040B5001 Contactor
The Resideo DP4040B5001 is a 4-pole definite purpose contactor engineered for heavy-duty switching in commercial and industrial HVACR systems. Built for across-the-line starting of induction motors, this PowerPro contactor features a 120V coil and is rated for a 40 Amp inductive load (50 Amp resistive), providing a robust solution for multi-circuit control. The silver cadmium oxide contacts are designed for durability and consistent conductivity, minimizing arc erosion during frequent cycling. With a -4°F to 149°F temperature range, this unit maintains reliable operation in demanding mechanical rooms and outdoor enclosures. For field installation, the DP4040B5001 utilizes dual-head termination with 1/4" quick connects and #6 screws, and it includes universal mounting slots to ensure compatibility with standard industry footprints. This model is also A2L refrigerant compliant, making it a future-proof choice for modern cooling applications requiring 120Vac control circuitry.
Key Benefits- Versatile 4-Pole Configuration: Allows for simultaneous switching of four separate circuits or the neutral line in 3-phase applications.
- High Current Rating: Handles up to 40 Amp Full Load Amps (FLA) and 50 Amp resistive loads for high-power motors and heaters.
- Easy Installation: Features multiple mounting holes and universal slots for fast interchangeability with existing contactors.
- Reliable Performance: Equipped with silver cadmium oxide contacts to provide superior arc resistance and extend service life.
- Refrigerant Ready: Fully compliant with A2L refrigerants, adhering to the latest environmental and safety standards for HVACR technicians.
What is the difference between the 40A inductive and 50A resistive rating?
The 40 Amp rating applies to inductive loads like compressors or fans where there is a high inrush current, while the 50 Amp rating applies to resistive heating elements with steady current draw.
Can I use this contactor to replace a 3-pole model?
Yes, provided the 120V coil voltage and amperage match. The 4th pole can be used as an auxiliary circuit or left unused, while the universal mounting base fits most standard 3-pole footprints.
Are the coil terminals compatible with standard wire connectors?
Absolutely. The DP4040B5001 uses a combination of 1/4" male quick connects and #6 binding head screws for secure termination of both control and power wiring.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
