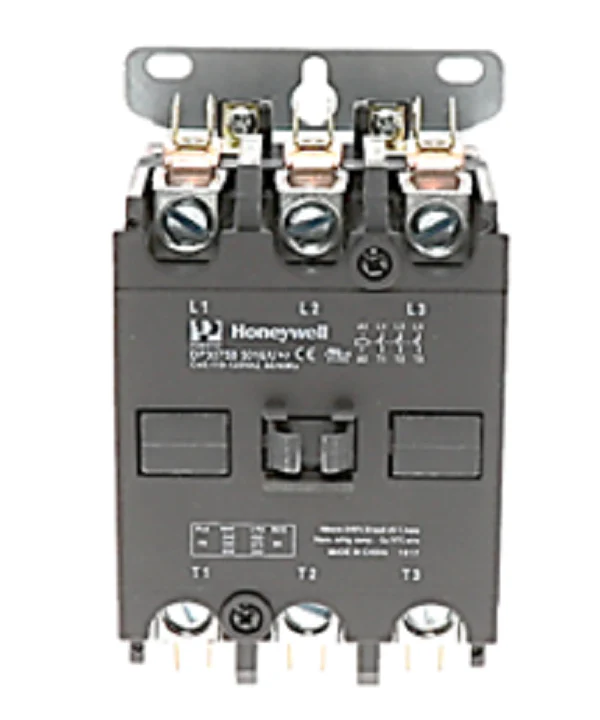

Resideo DP3075B5016 Contactor
The Resideo DP3075B5016 is a professional-grade 3-pole definite purpose contactor engineered for demanding high-amperage HVACR applications. As a veteran-preferred 75 amp contactor, it features a 120V AC coil encapsulated in moisture-proof epoxy to ensure reliable operation in harsh environments. The PowerPro series is specifically designed for inductive motor loads and resistive heating elements, providing a robust switching solution with silver cadmium oxide contacts that minimize arcing and extend the mechanical life of the component. With an ambient operating range of -4°F to 149°F, this unit maintains performance in unconditioned mechanical rooms and rooftop enclosures. For quick installations, the DP3075B5016 utilizes universal mounting slots and a combination of 1/4" quick connects and #6 screw terminals, making it a drop-in replacement for most OEM HVAC contactors. This definite purpose switching relay is critical for managing 75A Full Load Amps (FLA) while being fully A2L refrigerant compliant for modern cooling systems.
Key Benefits:- High-Amperage Capacity: Rated for 75A FLA and 94A resistive loads, perfect for large commercial compressors and heaters.
- Environmentally Sealed Coil: The 120V coil is encapsulated in a moisture-proof epoxy to prevent shorting in high-humidity environments.
- Versatile Termination: Features box lug connectors for main power and dual 1/4" quick-connects for the control circuit.
- Interchangeable Mounting: Standard baseplate pattern ensures compatibility with a wide range of competitive 3-pole footprints.
- A2L Ready: Certified for use with the latest low-GWP refrigerants, future-proofing your equipment installations.
- Can this replace a contactor with a lower amp rating? Yes, you can use a 75 amp 3-pole contactor to replace a 60A or 50A unit, provided the coil voltage matches and the physical footprint fits your cabinet.
- What is the purpose of the silver cadmium oxide contacts? They provide superior conductivity and prevent the "welding" of contacts under the high locked rotor amps (LRA) typical of large induction motors.
- Is the 120V coil compatible with 24V control systems? No, this model requires a 120V control signal. If your transformer outputs 24V, you must use a different coil configuration.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
