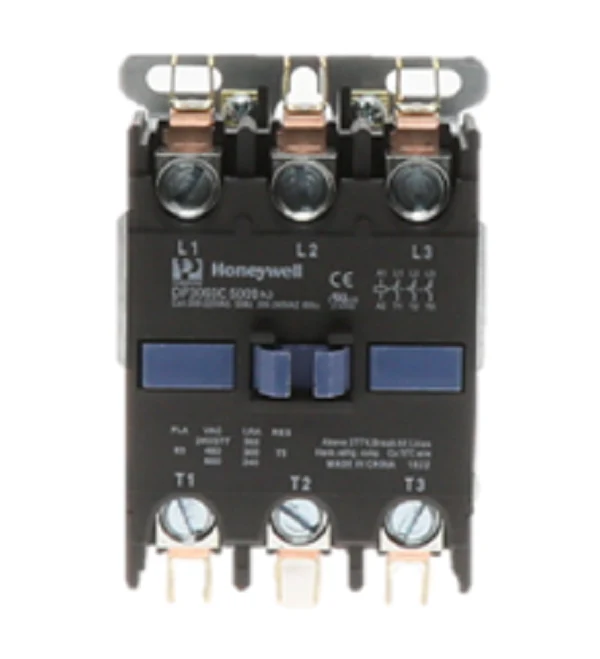

Resideo DP3060C5009 Contactor
The Resideo DP3060C5009 is a heavy-duty, 3-pole definite purpose contactor engineered for rigorous HVACR and industrial motor control applications. Rated for a 60 amp inductive load (FLA) and up to 75 amps resistive, this PowerPro series contactor is built to handle the high inrush demands of large compressors, heating elements, and three-phase induction motors. The 208/240V AC coil features a shrouded design to protect internal components from environmental debris, while the silver cadmium oxide contacts provide superior conductivity and weld resistance for extended service life in high-cycle environments. Installation is engineered for efficiency, utilizing lug connectors for secure primary power lines and 1/4" quick connects with #6 screws for control wiring. This electromagnetically operated switch is a reliable replacement for many legacy Honeywell and Square D DPA series models, maintaining high-performance switching in ambient temperatures ranging from -4°F to 149°F.
Key Benefits- Heavy-Duty Switching: Rated for 60A FLA and 75A RES, making it ideal for large commercial compressors and 240V heaters.
- Environmental Protection: The shrouded coil prevents dust and moisture ingress, a common cause of premature coil burnout in rooftop units.
- Installation Versatility: Features multiple mounting holes and a universal footprint to ensure compatibility with existing 3-pole cabinet layouts.
- Arc Suppression: Premium silver cadmium oxide contacts minimize arcing and pitting, ensuring a clean break even under full load.
- Standardized Connectivity: Equipped with industrial box lugs and dual-purpose quick-connect/screw terminals for the control circuit.
Can I use this 60 amp contactor to replace a 30 amp or 40 amp unit?
Yes, as long as the coil voltage (208/240V) and the number of poles match. Using a higher amperage contactor like the DP3060C5009 provides a higher safety margin and can often prolong the life of the contacts in heavy-duty cycles.
Is this contactor compatible with single-phase applications?
While this is a 3-pole contactor designed for 3-phase systems, it can be used in single-phase applications by utilizing only two of the three poles. However, always verify that the LRA (locked rotor amps) of your equipment does not exceed 360A at 240V.
What are the signs that my current contactor needs replacement?
Look for pitted or welded contacts, a buzzing/humming sound from the coil, or visible signs of melting on the housing. If you measure 240V at the coil but the contacts do not pull in, the coil is likely open and requires a full replacement of the unit.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
