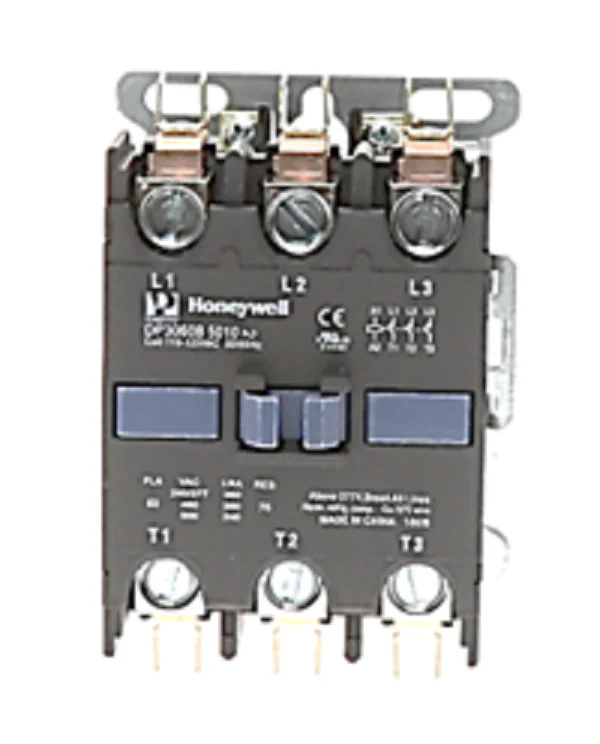

Resideo DP3060B5010 Contactor
The Resideo DP3060B5010 is a heavy-duty 3-pole definite purpose contactor engineered for high-demand HVACR and industrial applications. Rated for 60 FLA (Full Load Amps) and 75 Res. Amps, this unit features a 120V coil and is designed for reliable switching of compressors, motors, and heating elements. The silver cadmium oxide contacts provide superior conductivity and resistance to welding or pitting under high-inrush startup conditions. Installation is streamlined via dual-termination options, utilizing 1/4" quick connects and #6 terminal screws for secure field wiring. Built to withstand extreme environmental variables, it operates effectively within a -4°F to 149°F temperature range. This contactor serves as a direct professional upgrade for system maintenance, ensuring the electrical integrity of inductive loads while meeting rigid NEMA 2 standards for HVAC compressor contactors. Its compact footprint and DPST configuration make it a versatile choice for multi-phase equipment requiring precise load management.
Key Benefits for Technicians- High Current Capacity: Rated for 60 Amp loads, making it ideal for large tonnage split systems and commercial refrigeration units.
- Resilient Contact Metallurgy: Silver cadmium oxide composition extends the mechanical life of the 60 amp 3 pole contactor by minimizing arc erosion.
- Flexible Terminations: Combination lug and quick-connect terminals allow for fast integration into existing control circuits and power distribution blocks.
- Thermal Stability: Engineered to maintain consistent pull-in and drop-out voltages across a wide ambient temperature spectrum.
- Universal Compatibility: Standard mounting base dimensions ensure this HVAC definite purpose contactor fits most existing equipment footprints.
What are the primary applications for a 3-pole 60 FLA contactor?
This contactor is typically used for switching three-phase power to commercial air conditioning compressors, heavy-duty pumps, and resistive heating banks where a 120V control circuit is present.
Can I use this to replace a contactor with a lower FLA rating?
Yes, you can replace a 30A, 40A, or 50A contactor with this 60A model, provided the coil voltage (120V) and physical dimensions match. Upgrading the amperage rating often results in a longer service life for the contacts.
Are the coil terminals polarized?
No, the 120V AC coil terminals are not polarized, allowing for standard field wiring to the thermostat or control board outputs.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
