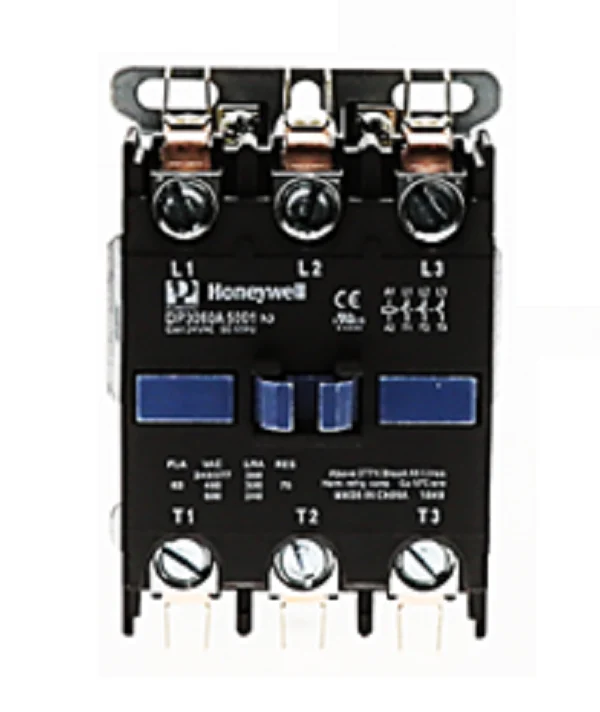

Resideo DP3060A5001 Contactor
The Resideo DP3060A5001 is a 3-pole definite purpose contactor engineered for heavy-duty industrial and commercial HVACR applications requiring a 60-amp full load current rating. Designed to manage high-amperage inductive loads, this 24V coil contactor features silver cadmium oxide contacts to resist welding and pitting under high-stress cycles. The physical interface includes #6 screw terminals and 1/4" quick connects, ensuring secure electrical integration for a three-phase HVAC contactor setup. Rated for an ambient temperature range of -4°F to 149°F, this unit provides reliable switching for compressors, pumps, and heating elements. When sourcing a 60A 3-pole contactor replacement, the DP3060A5001 offers the necessary arc suppression and mechanical durability required for 24Vac DPST motor control. Its compact frame design facilitates straightforward installation in control panels where space and heat dissipation are critical factors.
Key Benefits
- High-Capacity Switching: Rated for 60 FLA and 75 RES, providing robust power management for large three-phase motors.
- Durable Contact Material: Silver cadmium oxide contacts ensure long-term conductivity and minimize contact bounce.
- Versatile Wiring Options: Dual-type terminals with #6 screws and quick connects allow for flexible field wiring.
- Environmental Resilience: Functional in extreme conditions ranging from -20°C up to 65°C.
- Standardized Footprint: Designed as a direct drop-in for most NEMA-type definite purpose contactors in this amperage class.
Common Questions
Can the Resideo DP3060A5001 replace a 2-pole contactor?
While this is a 3-pole device, it can be used in 1-pole or 2-pole applications by utilizing two of the available poles, provided the 60-amp rating and 24V coil voltage match the original equipment specifications.
What is the locked rotor amp (LRA) rating for this 60A contactor?
This unit is typically rated for 360 LRA at 240V, 300 LRA at 480V, and 240 LRA at 600V, making it suitable for high-demand startup currents in commercial refrigeration.
Are the coil terminals interchangeable?
Yes, the 24Vac coil terminals accept standard 1/4" female spade connectors common in modern HVAC control circuits.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
