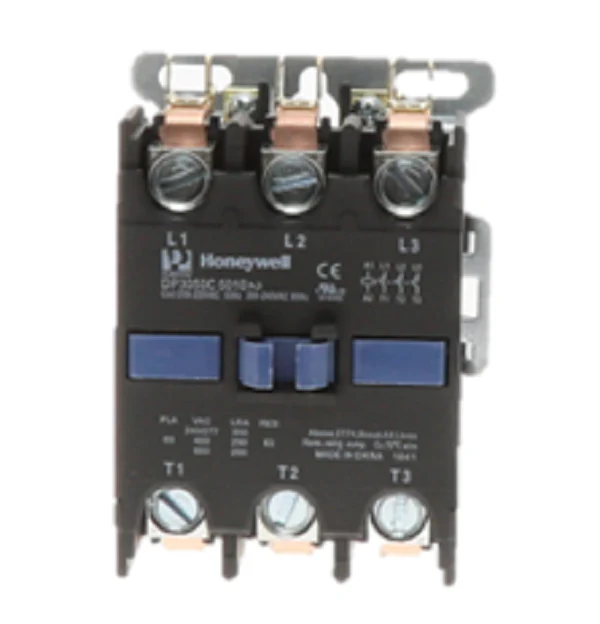

Resideo DP3050C5010 Contactor
The Resideo DP3050C5010 is a heavy-duty, 3-pole definite purpose contactor engineered for high-demand HVACR applications requiring reliable switching of induction motors. This 50 Amp contactor features a dual-rated 208/240Vac coil and a DPST configuration, making it a robust solution for three-phase electrical control. Serving as the direct mechanical and electrical replacement for 61462, this unit ensures seamless field installation with interchangeable mounting holes that match most competitive industry footprints.
Designed for longevity under harsh conditions, the DP3050C5010 is built with silver cadmium oxide contacts to provide superior conductivity and prevent premature pitting or welding. The 3-pole design includes shrouded coils to protect against environmental debris, carbon tracking, and moisture. Techs will appreciate the flexible termination options, utilizing box lug connectors for main power and 1/4" quick-connects alongside #6 screws for control wiring. With an operational temperature range of -4°F to 149°F, this PowerPro series contactor maintains consistent performance in both residential and commercial mechanical rooms.
Key Benefits- Universal Compatibility: Engineered as a direct drop-in replacement for 61462 and compatible with Resideo/Honeywell DP3050 series specifications.
- High Current Rating: Rated for 50 Amps AFL and 63 Amps resistive, efficiently handling high-load compressors and fan motors.
- Enhanced Durability: Shrouded coils and silver cadmium oxide contacts reduce mechanical wear and increase electrical life cycles.
- Flexible Installation: Features multiple mounting slots and dual terminal types (lugs and quick-connects) for rapid field service.
Is the DP3050C5010 compatible with A2L refrigerants?
Yes, this Resideo contactor is designed to meet the technical requirements for modern HVAC systems, including those utilizing A2L refrigerants.
What causes a 50 amp 3 pole contactor to buzz or chatter?
Chattering is typically caused by improper control voltage at the 208/240V coil, debris between the armature and core, or pitted contacts. Ensure all 1/4" quick-connects are secure and 240V signal is consistent.
Can this contactor be used for single-phase applications?
While designed for 3-pole three-phase loads, it can be utilized in single-phase circuits; however, all poles should be wired according to local code to ensure balanced wear.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $130.66
-65%$130.66
$45.73Resideo DP3050C5010 Contactor
The Resideo DP3050C5010 is a heavy-duty, 3-pole definite purpose contactor engineered for high-demand HVACR applications requiring reliable switching of induction motors. This 50 Amp contactor features a dual-rated 208/240Vac coil and a DPST configuration, making it a robust solution for three-phase electrical control. Serving as the direct mechanical and electrical replacement for 61462, this unit ensures seamless field installation with interchangeable mounting holes that match most competitive industry footprints.
Designed for longevity under harsh conditions, the DP3050C5010 is built with silver cadmium oxide contacts to provide superior conductivity and prevent premature pitting or welding. The 3-pole design includes shrouded coils to protect against environmental debris, carbon tracking, and moisture. Techs will appreciate the flexible termination options, utilizing box lug connectors for main power and 1/4" quick-connects alongside #6 screws for control wiring. With an operational temperature range of -4°F to 149°F, this PowerPro series contactor maintains consistent performance in both residential and commercial mechanical rooms.
Key Benefits- Universal Compatibility: Engineered as a direct drop-in replacement for 61462 and compatible with Resideo/Honeywell DP3050 series specifications.
- High Current Rating: Rated for 50 Amps AFL and 63 Amps resistive, efficiently handling high-load compressors and fan motors.
- Enhanced Durability: Shrouded coils and silver cadmium oxide contacts reduce mechanical wear and increase electrical life cycles.
- Flexible Installation: Features multiple mounting slots and dual terminal types (lugs and quick-connects) for rapid field service.
Is the DP3050C5010 compatible with A2L refrigerants?
Yes, this Resideo contactor is designed to meet the technical requirements for modern HVAC systems, including those utilizing A2L refrigerants.
What causes a 50 amp 3 pole contactor to buzz or chatter?
Chattering is typically caused by improper control voltage at the 208/240V coil, debris between the armature and core, or pitted contacts. Ensure all 1/4" quick-connects are secure and 240V signal is consistent.
Can this contactor be used for single-phase applications?
While designed for 3-pole three-phase loads, it can be utilized in single-phase circuits; however, all poles should be wired according to local code to ensure balanced wear.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The Resideo DP3050C5010 is a heavy-duty, 3-pole definite purpose contactor engineered for high-demand HVACR applications requiring reliable switching of induction motors. This 50 Amp contactor features a dual-rated 208/240Vac coil and a DPST configuration, making it a robust solution for three-phase electrical control. Serving as the direct mechanical and electrical replacement for 61462, this unit ensures seamless field installation with interchangeable mounting holes that match most competitive industry footprints.
Designed for longevity under harsh conditions, the DP3050C5010 is built with silver cadmium oxide contacts to provide superior conductivity and prevent premature pitting or welding. The 3-pole design includes shrouded coils to protect against environmental debris, carbon tracking, and moisture. Techs will appreciate the flexible termination options, utilizing box lug connectors for main power and 1/4" quick-connects alongside #6 screws for control wiring. With an operational temperature range of -4°F to 149°F, this PowerPro series contactor maintains consistent performance in both residential and commercial mechanical rooms.
Key Benefits- Universal Compatibility: Engineered as a direct drop-in replacement for 61462 and compatible with Resideo/Honeywell DP3050 series specifications.
- High Current Rating: Rated for 50 Amps AFL and 63 Amps resistive, efficiently handling high-load compressors and fan motors.
- Enhanced Durability: Shrouded coils and silver cadmium oxide contacts reduce mechanical wear and increase electrical life cycles.
- Flexible Installation: Features multiple mounting slots and dual terminal types (lugs and quick-connects) for rapid field service.
Is the DP3050C5010 compatible with A2L refrigerants?
Yes, this Resideo contactor is designed to meet the technical requirements for modern HVAC systems, including those utilizing A2L refrigerants.
What causes a 50 amp 3 pole contactor to buzz or chatter?
Chattering is typically caused by improper control voltage at the 208/240V coil, debris between the armature and core, or pitted contacts. Ensure all 1/4" quick-connects are secure and 240V signal is consistent.
Can this contactor be used for single-phase applications?
While designed for 3-pole three-phase loads, it can be utilized in single-phase circuits; however, all poles should be wired according to local code to ensure balanced wear.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
