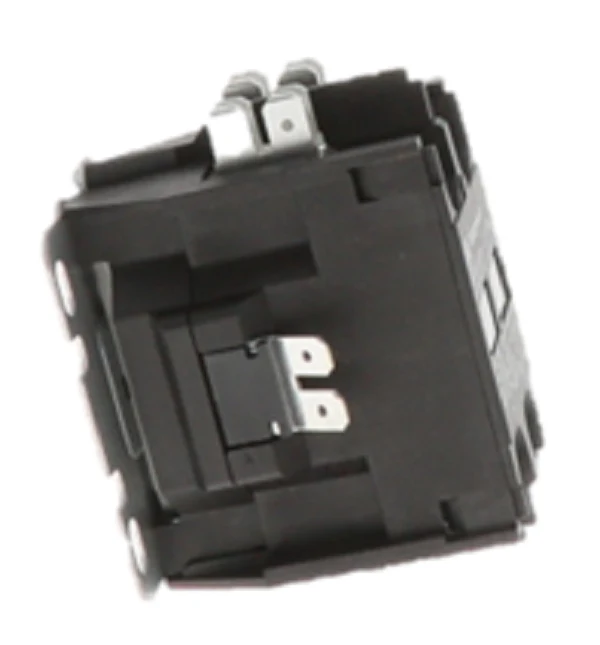

Resideo DP2030C5003 Contactor
The Resideo DP2030C5003 is a robust 2-pole definite purpose contactor engineered for high-cycle reliability in residential and commercial HVACR systems. Designed to manage 208/240Vac coil voltage, this 30-amp contactor features DPST (Double Pole Single Throw) switching, making it an ideal field replacement for air conditioning condensers, heat pumps, and refrigeration compressors. The silver cadmium oxide contacts are specifically selected to resist welding and pitting during high-inrush startup loads, ensuring consistent electrical conductivity across a wide operating temperature range of -4°F to 149°F. For streamlined installations, the unit utilizes 1/4" quick connect terminals and industry-standard mounting holes, allowing for rapid exchange in tight control panels. This PowerPro series contactor provides the mechanical durability required to handle inductive loads while maintaining strict arc suppression standards essential for multi-stage cooling equipment and electrical heating circuits.
Technical Performance Features
- Double Pole Configuration: Provides reliable 240V circuit interruption with 30 Amps of inductive load capacity.
- Resilient Contact Material: Silver cadmium oxide composition prevents premature contact wear and sticking under high-start torque conditions.
- Universal Compatibility: Standardized footprint replaces most OEM 30-amp contactors in split system units and RTUs.
- Industrial Grading: Rated for a broad temperature envelope, ensuring arc-free performance in unconditioned mechanical rooms or outdoor cabinets.
- Secure Interfacing: 1/4" male spade terminals ensure low-resistance wiring connections for control and power circuits.
Common Application Questions
What are the primary indicators that this contactor needs replacement?
Technicians should look for pitted or "welded" contact points, excessive humming or chatter from the coil during engagement, or a complete failure of the compressor to cycle despite receiving a 240V command.
Can this 30-amp contactor replace a 25-amp unit?
Yes, in most HVACR applications, you can upgrade a 25-amp contactor to a 30-amp Resideo DP2030C5003, as the higher amperage rating provides a greater safety margin for the electrical load.
Is the coil polarity-sensitive on the DP2030C5003?
No, since this is an AC-actuated coil for 208/240V systems, the 24V or line-voltage control wires can be connected to either side of the coil terminals without affecting operation.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
