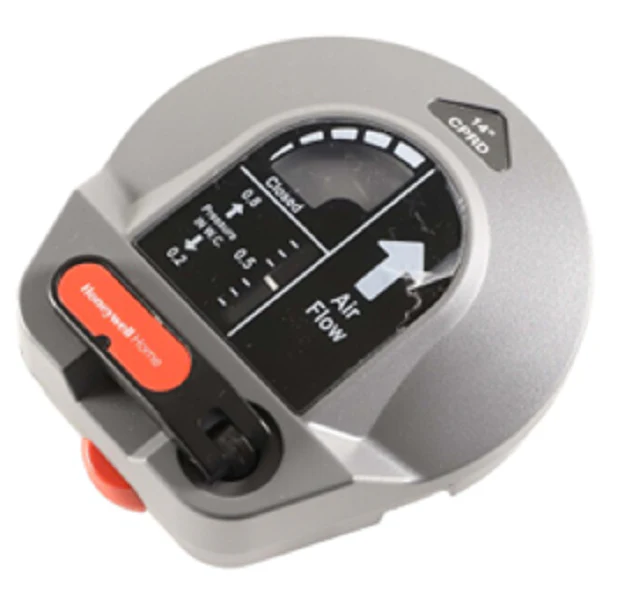

Resideo CPR14 Regulator
The Resideo CPR14 Regulator is a job-ready constant pressure regulating replacement designed specifically for 14-inch CPRD bypass dampers. For veteran technicians managing multi-zone HVAC systems, this unit is the standard for maintaining static pressure relief without the need for cumbersome counterweights. The CPR14/U bypass regulator utilizes an internal calibrated spring tension mechanism to provide consistent system pressure as zone dampers cycle, regardless of fluctuations in blower speed or total system CFM. By replacing a failing actuator with this HVAC zoning regulator, you ensure the bypass air flow stays balanced, protecting the furnace or air handler from cycling on high-limit or freezing coils. Its quick-connect regulator design allows for rapid field replacement in any orientation, saving significant time during service calls. Engineered for durability in forced-air zoning applications, the Resideo CPR14 ensures the bypass damper responds instantly to pressure changes, maintaining your system's design static even when only a single zone calls for air.
Key Benefits- Weight-Free Balancing: Eliminates the need for manual counterweight adjustments, reducing commissioning time.
- Universal Orientation: Flexible mounting allows the regulator to be installed at any angle or position within the ductwork.
- Constant Static Pressure: Precision spring tension provides true zone pressure relief for consistent airflow performance.
- Direct OEM Replacement: Designed as a drop-in replacement for CPRD14 bypass dampers, ensuring 100% frame compatibility.
- High-Flow Efficiency: Supports bypass applications up to 1,700 CFM when paired with the 14-inch bypass assembly.
Is the CPR14 compatible with older weighted bypass dampers?
The CPR14 is specifically a replacement regulator for the CPRD series constant pressure dampers. It is not designed to retrofit onto legacy weighted-arm dampers from other manufacturers.
Does this regulator require an external power supply or 24V wiring?
No. The Resideo CPR14 is a purely mechanical spring-loaded regulator. It requires no electrical connections to function, as it responds directly to the duct’s internal static pressure.
How do I adjust the pressure setting on this unit?
Adjustment is performed via the integrated pre-set dial. Unlike weighted models, you simply turn the dial to the desired static pressure setpoint indicated on the housing.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
