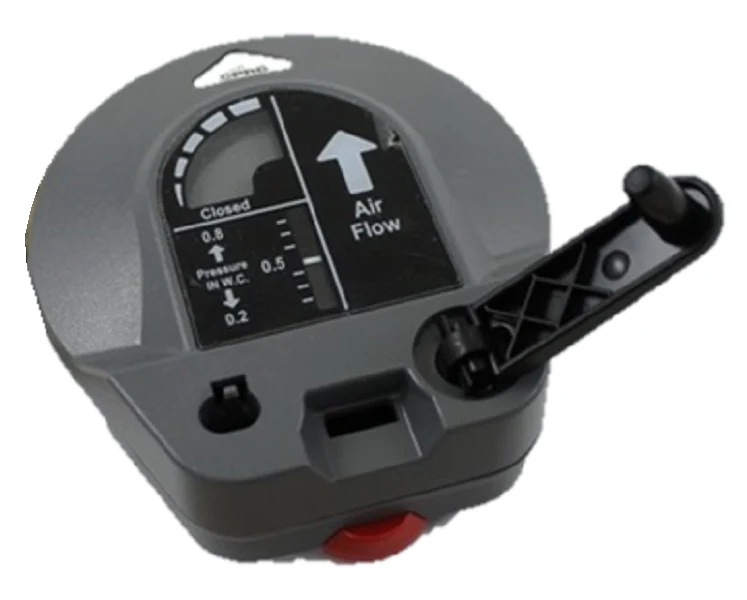

Resideo CPR10 Regulator
The Resideo CPR10 Regulator is a specialized 10-inch bypass replacement regulator designed as a direct technical substitute for the CPRD10 bypass damper system. Engineered for professional-grade forced-air zoning applications, this component effectively maintains constant system pressure by relieving excess static pressure as individual zone dampers cycle. Unlike legacy counterweight systems that require manual balancing and are prone to air noise callbacks, the CPR10 utilizes a precise calibrated spring tension regulator. This mechanism automatically adjusts to changes in airflow, ensuring stable operation across a wide range of blower speeds and duct configurations. Its compact, galvanized steel construction allow for versatile any-orientation installation, making it a reliable choice for tight mechanical spaces. By preventing high-static conditions, this regulator preserves the integrity of the air handler and reduces unnecessary stress on the HVAC system.
Key Benefits for Contractors- Eliminates Manual Balancing: The internal spring-loaded mechanism removes the need for weighted arms, streamlining the commissioning process.
- Enhanced System Performance: Provides precise static pressure relief up to 1,000 CFM, preventing coil freeze-ups and high-limit trips.
- Universal Mounting: Designed to function at any angle or orientation, providing maximum flexibility for HVAC ductwork installation.
- Quick-Connect Integration: Features a simplified setup that integrates directly into existing 10-inch TrueZONE bypass duct runs without complex modifications.
- Is this compatible with other TrueZONE sizes? The CPR10 is specifically sized for 10-inch ducting and 1,000 CFM. For 8-inch, 12-inch, or 14-inch systems, you must use the corresponding CPR8, CPR12, or CPR14 replacement regulators.
- How do I set the bypass pressure? The unit features a simple dial for setting the "crack pressure," allowing you to calibrate exactly when the constant pressure regulating damper begins to relieve excess air.
- Can this be used with variable-speed blowers? Yes, the Resideo CPR10 is engineered to work alongside modern variable-speed equipment, adjusting tension dynamically to prevent air noise and maintain duct velocity.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
