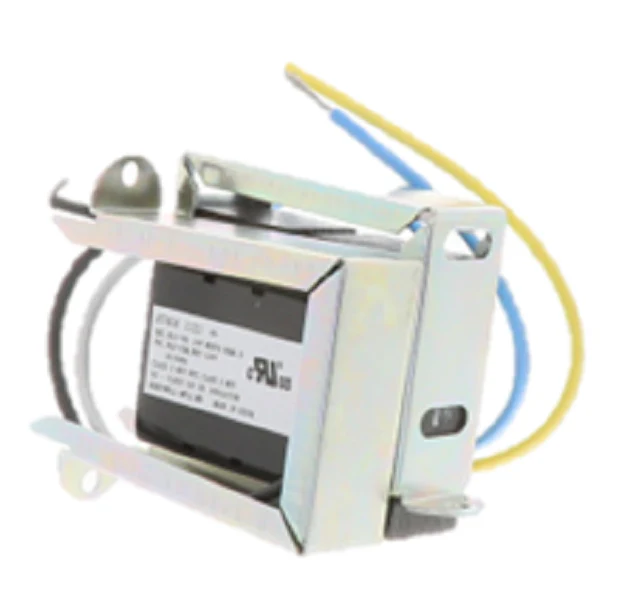

Resideo AT40A1121 Transformer
The Resideo AT40A1121 is a standard 40VA HVAC transformer designed for reliable 120V to 24V power conversion in residential and light commercial climate control systems. This NEMA Type D transformer features a 120V primary winding and a 26.5V secondary output at no load, ensuring consistent voltage delivery to thermostats, gas valves, and relay coils. Built with a robust channel frame mounting configuration, this unit integrates seamlessly into existing control panels or junction boxes. The inclusion of 9-inch color-coded lead wires simplifies wire nut terminations, reducing installation time during field replacements. Engineers have designed the AT40A1121 to meet stringent safety standards, providing thermal protection against overloads. For technicians troubleshooting low voltage control circuit failures, this 120V primary transformer offers a versatile footprint compatible with various OEM specifications, making it an essential stock item for service vehicles. Ensure your secondary load does not exceed the 40VA rating to maintain optimal step-down transformer efficiency and prevent premature component fatigue.
Key Application Benefits
- Universal Compatibility: Ideal for powering 24V control circuits in furnaces, boilers, and air conditioning systems.
- Simplified Integration: The channel frame mount allows for secure attachment in multiple orientations within the equipment cabinet.
- High Dielectric Strength: NEMA Type D construction ensures durable insulation performance under standard operating temperatures.
- Efficient Field Wiring: Pre-stripped 9-inch leads provide ample reach for organized cable management in tight enclosures.
Common Technical Questions
Can I use the AT40A1121 to replace a 30VA transformer?
Yes, you can upgrade from a 30VA to a 40VA transformer as the higher VA rating provides a greater power overhead for the control circuit without damaging components, provided the voltage remains 24V.
What are the mounting hole dimensions for the channel frame?
The Resideo AT40A1121 features standard mounting slots designed to align with most 2-inch by 2-inch or 2.5-inch spacing configurations found in HVAC bulkheads.
How do I verify a failing transformer in the field?
Check for 120V at the primary leads; if present, measure the secondary leads for approximately 24V-27V. No output voltage or a tripped internal thermal fuse typically indicates the need for a replacement 24V transformer.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $36.90
-65%$36.90
$12.91Resideo AT40A1121 Transformer
The Resideo AT40A1121 is a standard 40VA HVAC transformer designed for reliable 120V to 24V power conversion in residential and light commercial climate control systems. This NEMA Type D transformer features a 120V primary winding and a 26.5V secondary output at no load, ensuring consistent voltage delivery to thermostats, gas valves, and relay coils. Built with a robust channel frame mounting configuration, this unit integrates seamlessly into existing control panels or junction boxes. The inclusion of 9-inch color-coded lead wires simplifies wire nut terminations, reducing installation time during field replacements. Engineers have designed the AT40A1121 to meet stringent safety standards, providing thermal protection against overloads. For technicians troubleshooting low voltage control circuit failures, this 120V primary transformer offers a versatile footprint compatible with various OEM specifications, making it an essential stock item for service vehicles. Ensure your secondary load does not exceed the 40VA rating to maintain optimal step-down transformer efficiency and prevent premature component fatigue.
Key Application Benefits
- Universal Compatibility: Ideal for powering 24V control circuits in furnaces, boilers, and air conditioning systems.
- Simplified Integration: The channel frame mount allows for secure attachment in multiple orientations within the equipment cabinet.
- High Dielectric Strength: NEMA Type D construction ensures durable insulation performance under standard operating temperatures.
- Efficient Field Wiring: Pre-stripped 9-inch leads provide ample reach for organized cable management in tight enclosures.
Common Technical Questions
Can I use the AT40A1121 to replace a 30VA transformer?
Yes, you can upgrade from a 30VA to a 40VA transformer as the higher VA rating provides a greater power overhead for the control circuit without damaging components, provided the voltage remains 24V.
What are the mounting hole dimensions for the channel frame?
The Resideo AT40A1121 features standard mounting slots designed to align with most 2-inch by 2-inch or 2.5-inch spacing configurations found in HVAC bulkheads.
How do I verify a failing transformer in the field?
Check for 120V at the primary leads; if present, measure the secondary leads for approximately 24V-27V. No output voltage or a tripped internal thermal fuse typically indicates the need for a replacement 24V transformer.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
