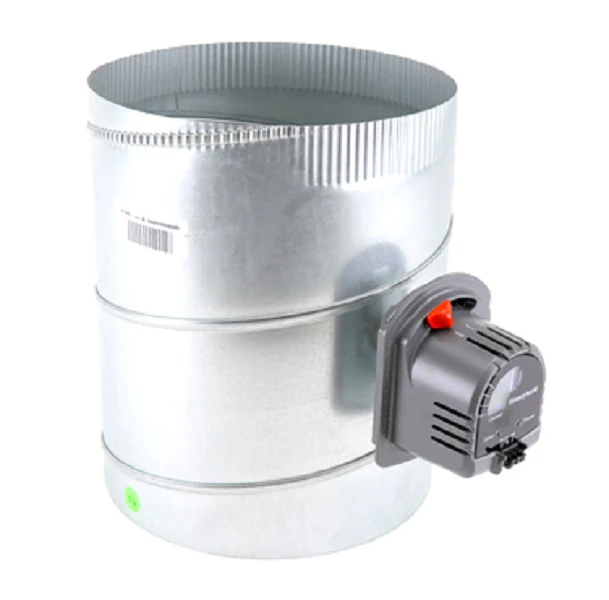

Resideo ARD10TZ Damper
The Resideo ARD10TZ is a 10-inch automatic round damper engineered for precise zone control in residential and light commercial HVAC systems. This 24VAC motorized damper features a two-position actuator with a default power-closed/spring-return open configuration, which is field-reversible to suit specific sequence-of-operation requirements. Built with a galvanized steel mill-finish shell and reinforced with synthetic bearings, the ARD10TZ ensures low-leakage performance and long-term durability under high-cycle conditions. It serves as the direct professional replacement for legacy RDS-10, CRDS10, and RSD-10 models. The actuator delivers high torque for reliable blade positioning against static pressure, utilizing a simple two-wire terminal block for streamlined integration with Honeywell Home TrueZONE panels and other 24V zone controllers. The visual position indicator allows technicians to quickly verify damper status during system commissioning or troubleshooting.
Key Technical Benefits
- Field-Reversible Actuator: Easily switches between Power-Closed/Spring-Open and Power-Open/Spring-Closed via a simple mechanical adjustment.
- High-Torque Performance: The synchronous motor actuator provides consistent force to ensure tight seal integrity and minimize bypass air.
- Direct Retrofit Compatibility: Designed to replace legacy round dampers including the ARD10 and RSD-10 series without ductwork modification.
- Gasketed Blade Design: Internal foam gaskets reduce decibel levels during operation and prevent air leakage when the zone is inactive.
- Simplified Wiring: The 24V HVAC damper motor uses a standard terminal board, reducing installation time in tight crawlspaces or mechanical rooms.
Common Installation Questions
Can the ARD10TZ be used for fresh air intake?
Yes, the ARD10TZ damper is frequently used for combustion air or fresh air make-up applications where a spring-return open fail-safe is required for safety protocols.
How do I reverse the motor logic on this 10-inch damper?
The M847D-ZONE actuator allows for manual reversal. By removing the motor and rotating the coupling, you can toggle between normally open and normally closed states based on your zoning system requirements.
What is the maximum static pressure rating for this unit?
This 10" round zone damper is rated for standard residential static pressures up to 1.0" WC, providing reliable seal-off in most high-velocity forced-air systems.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
