Resideo AP5210-30 Switch

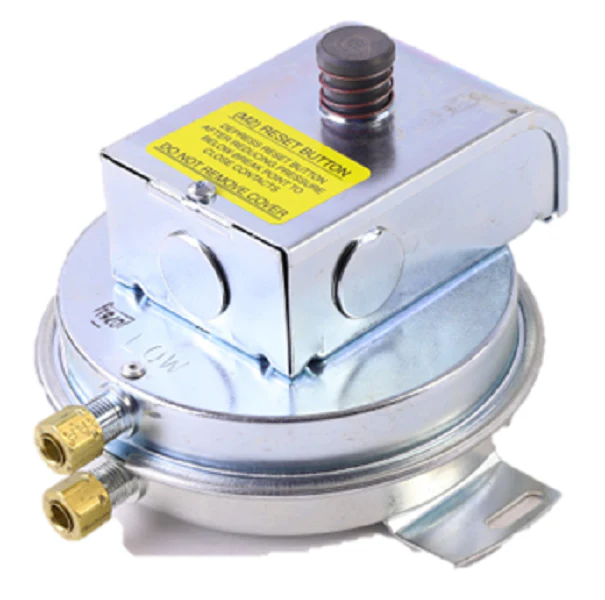

For veteran HVACR technicians and commercial contractors, the Resideo AP5210-30 Switch is a critical safety component designed for high-limit shutdown and precise differential pressure sensing. This manual reset, single pole single throw (SPST) air flow switch is engineered to monitor positive, negative, or differential air pressure across filters, coils, and fans. With a field-adjustable setpoint ranging from 0.3 to 12 inches w.c., it provides the versatility required for demanding ventilation and environmental control applications. The unit features built-in 1/4 inch compression fittings for a secure, leak-proof connection to rigid or semi-rigid tubing, ensuring reliable pneumatic operation in high-stakes pneumatic system monitoring.
Common Air Flow Switch Queries: Engineers often ask about the specific manual reset functionality of the AP5210-30; unlike automatic models, this unit requires physical intervention to restart once the setpoint is exceeded, and the contact remains open until the pressure drops and the reset button is depressed. When technicians search for Resideo differential pressure switch wiring, they will find that this SPST NC model simplifies high-limit alarm circuits. For those troubleshooting HVAC pressure switch failure, the durable metal enclosure of the AP5210-30 provides superior protection against environmental wear compared to plastic alternatives, maintaining calibrated accuracy within an operating temperature range of -40°F to +190°F.
Key Benefits- Precise Calibration: Supports an adjustable sensing range from 0.3 to 12.0 in. w.c., making it suitable for a wide variety of HVAC pressure monitoring tasks.
- Hard-Wired Reliability: Equipped with #8-32 screw terminals with cup washers for high-integrity electrical connections in high-vibration environments.
- Safety-First Manual Reset: Ensures system lockout until a technician can verify airflow differential pressure issues, preventing repetitive cycling in hazardous conditions.
- Universal Mount: Designed for surface mounting with the diaphragm in a vertical position to ensure maximum sensitivity and accuracy.
- Industry Approvals: UL and CSA listed and FM approved for use in commercial building automation and safety systems.
What type of tubing is compatible with the compression fittings?
The integrated 1/4 inch compression fittings are designed for 1/4 inch O.D. rigid or semi-rigid tubing. If using polyethylene tubing, barb fittings are typically recommended over compression styles.
Can this switch be used for both positive and negative pressure applications?
Yes. For positive pressure only, connect to the B port; for negative pressure only, connect to the A port. For differential sensing, connect the high sample to B and the low sample to A.
What are the electrical load limits for the AP5210-30?
This heavy-duty switch is rated for 20A resistive loads at 125 to 277 Vac, or 3/4 hp at 125 Vac and 1.5 hp at 250 Vac, accommodating most industrial high-limit applications.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Resideo AP5210-30 Switch
For veteran HVACR technicians and commercial contractors, the Resideo AP5210-30 Switch is a critical safety component designed for high-limit shutdown and precise differential pressure sensing. This manual reset, single pole single throw (SPST) air flow switch is engineered to monitor positive, negative, or differential air pressure across filters, coils, and fans. With a field-adjustable setpoint ranging from 0.3 to 12 inches w.c., it provides the versatility required for demanding ventilation and environmental control applications. The unit features built-in 1/4 inch compression fittings for a secure, leak-proof connection to rigid or semi-rigid tubing, ensuring reliable pneumatic operation in high-stakes pneumatic system monitoring.
Common Air Flow Switch Queries: Engineers often ask about the specific manual reset functionality of the AP5210-30; unlike automatic models, this unit requires physical intervention to restart once the setpoint is exceeded, and the contact remains open until the pressure drops and the reset button is depressed. When technicians search for Resideo differential pressure switch wiring, they will find that this SPST NC model simplifies high-limit alarm circuits. For those troubleshooting HVAC pressure switch failure, the durable metal enclosure of the AP5210-30 provides superior protection against environmental wear compared to plastic alternatives, maintaining calibrated accuracy within an operating temperature range of -40°F to +190°F.
Key Benefits- Precise Calibration: Supports an adjustable sensing range from 0.3 to 12.0 in. w.c., making it suitable for a wide variety of HVAC pressure monitoring tasks.
- Hard-Wired Reliability: Equipped with #8-32 screw terminals with cup washers for high-integrity electrical connections in high-vibration environments.
- Safety-First Manual Reset: Ensures system lockout until a technician can verify airflow differential pressure issues, preventing repetitive cycling in hazardous conditions.
- Universal Mount: Designed for surface mounting with the diaphragm in a vertical position to ensure maximum sensitivity and accuracy.
- Industry Approvals: UL and CSA listed and FM approved for use in commercial building automation and safety systems.
What type of tubing is compatible with the compression fittings?
The integrated 1/4 inch compression fittings are designed for 1/4 inch O.D. rigid or semi-rigid tubing. If using polyethylene tubing, barb fittings are typically recommended over compression styles.
Can this switch be used for both positive and negative pressure applications?
Yes. For positive pressure only, connect to the B port; for negative pressure only, connect to the A port. For differential sensing, connect the high sample to B and the low sample to A.
What are the electrical load limits for the AP5210-30?
This heavy-duty switch is rated for 20A resistive loads at 125 to 277 Vac, or 3/4 hp at 125 Vac and 1.5 hp at 250 Vac, accommodating most industrial high-limit applications.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
