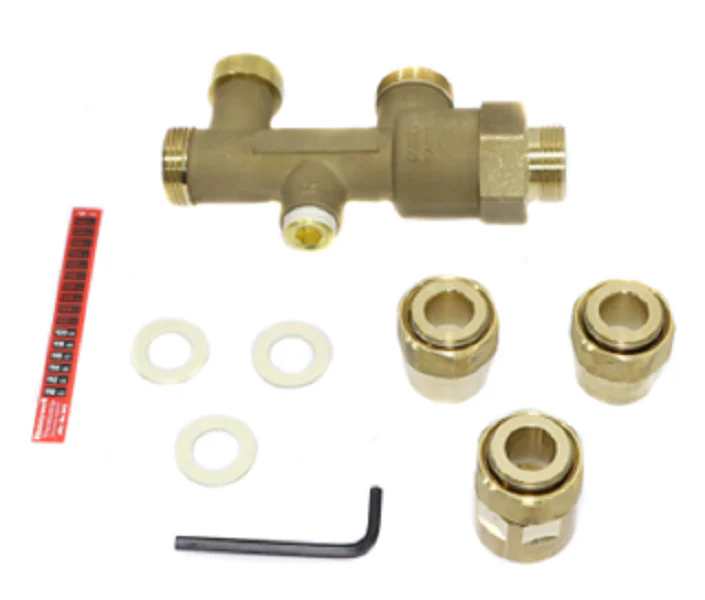

Resideo AMX102-US-1LF Valve
The Resideo Braukmann AMX102-US-1LF is a 1-inch union sweat thermostatic mixing valve engineered for professional potable water and radiant heating applications. This DirectConnect mixing valve installs directly onto the water heater hot port, significantly reducing labor by eliminating the need for additional elbows and tees. Featuring a lead-free bronze and stainless steel construction with Teflon-coated internal surfaces, this valve is designed to resist scale buildup and ensure long-term reliability in high-cycle environments. With a 4 Cv flow capacity and a precise 90-130°F temperature range, it provides stable output temperatures even under fluctuating supply pressures. The integrated recirculation port allows for immediate tempered water delivery, while the built-in check valve on the cold port prevents cross-flow. Technicians can easily calibrate the setpoint using the included 3/16-inch Allen wrench, ensuring the ASSE 1017 certified valve meets local safety codes for anti-scald protection.
Key Benefits for Contractors- Reduced Installation Time: The patented DirectConnect design mounts directly to the water heater, minimizing fittings and potential leak points.
- Scale Resistance: Teflon-coated wear surfaces prevent calcium and lime deposits from seizing the proportional shuttle.
- High Precision: Maintains constant mixed water temperature within a tight 90 to 130 degrees Fahrenheit range.
- System Safety: Mechanical flow reduction occurs in seconds if the cold water supply is interrupted to prevent high-temperature exposure.
- Lead-Free Compliance: Meets all current plumbing codes with less than 0.25% lead content on wettable surfaces.
Is this valve suitable for recirculating loops?
Yes, the AMX102-US-1LF features a dedicated 1/2-inch NPT recirculation port, making it ideal for large residential or commercial systems where instant hot water is required at every fixture.
What is the maximum pressure rating for this unit?
This thermostatic mixing valve is rated for a maximum safe operating pressure of 150 psi and can handle hot water inlet temperatures up to 212°F, though 180°F is the standard maximum for continuous operation.
Can I use this for radiant floor heating?
Absolutely. While designed for potable water, its high Cv rating and adjustable 90-130°F range make it an excellent choice for tempered supply lines in radiant floor heating and hydronic combo systems.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $280.34
-65%$280.34
$98.12Resideo AMX102-US-1LF Valve
The Resideo Braukmann AMX102-US-1LF is a 1-inch union sweat thermostatic mixing valve engineered for professional potable water and radiant heating applications. This DirectConnect mixing valve installs directly onto the water heater hot port, significantly reducing labor by eliminating the need for additional elbows and tees. Featuring a lead-free bronze and stainless steel construction with Teflon-coated internal surfaces, this valve is designed to resist scale buildup and ensure long-term reliability in high-cycle environments. With a 4 Cv flow capacity and a precise 90-130°F temperature range, it provides stable output temperatures even under fluctuating supply pressures. The integrated recirculation port allows for immediate tempered water delivery, while the built-in check valve on the cold port prevents cross-flow. Technicians can easily calibrate the setpoint using the included 3/16-inch Allen wrench, ensuring the ASSE 1017 certified valve meets local safety codes for anti-scald protection.
Key Benefits for Contractors- Reduced Installation Time: The patented DirectConnect design mounts directly to the water heater, minimizing fittings and potential leak points.
- Scale Resistance: Teflon-coated wear surfaces prevent calcium and lime deposits from seizing the proportional shuttle.
- High Precision: Maintains constant mixed water temperature within a tight 90 to 130 degrees Fahrenheit range.
- System Safety: Mechanical flow reduction occurs in seconds if the cold water supply is interrupted to prevent high-temperature exposure.
- Lead-Free Compliance: Meets all current plumbing codes with less than 0.25% lead content on wettable surfaces.
Is this valve suitable for recirculating loops?
Yes, the AMX102-US-1LF features a dedicated 1/2-inch NPT recirculation port, making it ideal for large residential or commercial systems where instant hot water is required at every fixture.
What is the maximum pressure rating for this unit?
This thermostatic mixing valve is rated for a maximum safe operating pressure of 150 psi and can handle hot water inlet temperatures up to 212°F, though 180°F is the standard maximum for continuous operation.
Can I use this for radiant floor heating?
Absolutely. While designed for potable water, its high Cv rating and adjustable 90-130°F range make it an excellent choice for tempered supply lines in radiant floor heating and hydronic combo systems.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
