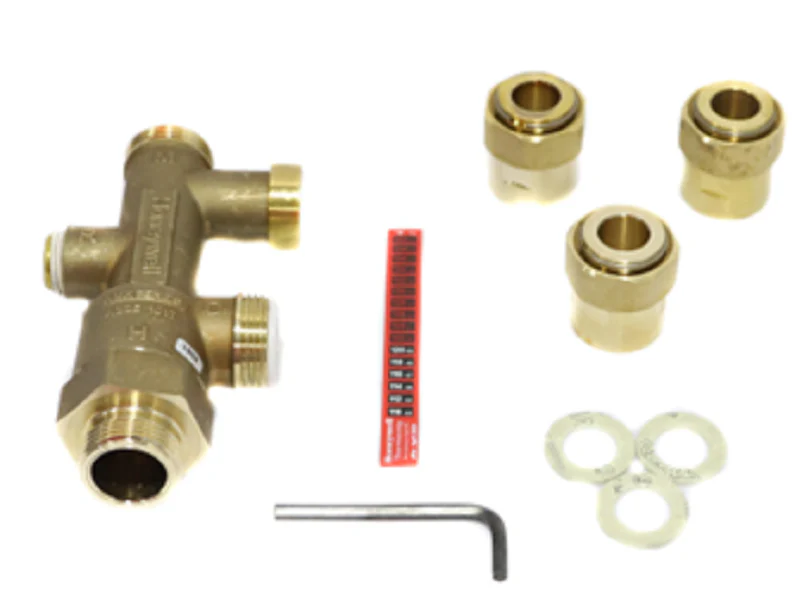

Resideo AMX101-UT-1LF Valve
The Resideo AMX101-UT-1LF is a heavy-duty thermostatic mixing valve designed for veteran contractors who prioritize efficient, high-performance potable water installations. Built with a DirectConnect™ design, this 3/4-inch union threaded mixing valve mounts directly to the water heater hot outlet, eliminating the need for extra elbows and tees. The low-lead brass and stainless steel construction includes Teflon-coated internal wear surfaces to resist mineral buildup and lime deposits, ensuring long-term seat integrity in hard water conditions. With a CV rating of 4.0 and a fast-acting thermal element, it provides constant outlet temperatures even as inlet pressures fluctuate. For safety, the valve features a fail-safe mechanism that reduces flow within seconds if the cold water supply is interrupted. This ASSE 1017 certified valve handles a temperature range of 90°F to 130°F, making it the professional standard for anti-scald protection in residential and light commercial systems.
Key Benefits
- DirectConnect Architecture: Streamlines the hot outlet path, reducing installation time and potential leak points.
- Advanced Scaling Resistance: Teflon-coated surfaces prevent calcium binding and unnecessary service calls.
- Lead-Free Compliance: Meets all current plumbing codes with less than 0.25% weighted average lead content.
- Dynamic Proportional Control: Simultaneously regulates hot and cold ports to maintain a rock-solid mixing valve temperature.
- Integrated Check Valves: Features an internal check valve on the cold port to prevent cross-contamination or thermal migration.
Common Questions
How do I adjust the temperature on the AMX101-UT-1LF?The temperature is field-adjustable using a 3/16" Allen wrench. Simply punch through the center of the label and turn the screw clockwise to decrease or counterclockwise to increase the mix output; always verify with a calibrated thermometer.
Does this valve support a recirculation loop?Yes, the Resideo AMX101-UT-1LF includes an integrated recirculation port, allowing for fast response at the fixture and energy-efficient operation when paired with a temperature-controlled circulator pump.
Is this valve suitable for radiant floor heating?While primarily a potable water valve, the high Flow Coefficient (4.0 Cv) and precision mixing make it an excellent mixing regulator for small-scale radiant loops or combo systems requiring tight temperature control.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $263.21
-65%$263.21
$92.12Resideo AMX101-UT-1LF Valve
The Resideo AMX101-UT-1LF is a heavy-duty thermostatic mixing valve designed for veteran contractors who prioritize efficient, high-performance potable water installations. Built with a DirectConnect™ design, this 3/4-inch union threaded mixing valve mounts directly to the water heater hot outlet, eliminating the need for extra elbows and tees. The low-lead brass and stainless steel construction includes Teflon-coated internal wear surfaces to resist mineral buildup and lime deposits, ensuring long-term seat integrity in hard water conditions. With a CV rating of 4.0 and a fast-acting thermal element, it provides constant outlet temperatures even as inlet pressures fluctuate. For safety, the valve features a fail-safe mechanism that reduces flow within seconds if the cold water supply is interrupted. This ASSE 1017 certified valve handles a temperature range of 90°F to 130°F, making it the professional standard for anti-scald protection in residential and light commercial systems.
Key Benefits
- DirectConnect Architecture: Streamlines the hot outlet path, reducing installation time and potential leak points.
- Advanced Scaling Resistance: Teflon-coated surfaces prevent calcium binding and unnecessary service calls.
- Lead-Free Compliance: Meets all current plumbing codes with less than 0.25% weighted average lead content.
- Dynamic Proportional Control: Simultaneously regulates hot and cold ports to maintain a rock-solid mixing valve temperature.
- Integrated Check Valves: Features an internal check valve on the cold port to prevent cross-contamination or thermal migration.
Common Questions
How do I adjust the temperature on the AMX101-UT-1LF?The temperature is field-adjustable using a 3/16" Allen wrench. Simply punch through the center of the label and turn the screw clockwise to decrease or counterclockwise to increase the mix output; always verify with a calibrated thermometer.
Does this valve support a recirculation loop?Yes, the Resideo AMX101-UT-1LF includes an integrated recirculation port, allowing for fast response at the fixture and energy-efficient operation when paired with a temperature-controlled circulator pump.
Is this valve suitable for radiant floor heating?While primarily a potable water valve, the high Flow Coefficient (4.0 Cv) and precision mixing make it an excellent mixing regulator for small-scale radiant loops or combo systems requiring tight temperature control.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
