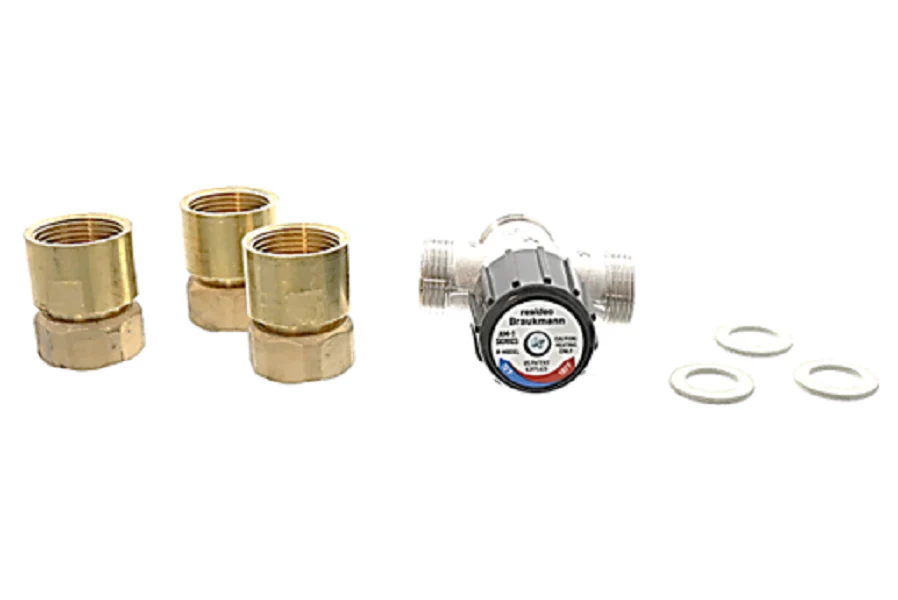

Resideo AM102R-UT-1 Valve
The Resideo AM102R-UT-1 is a high-performance 1 inch Union NPT mixing valve engineered specifically for hydronic heating applications. Built with a Teflon-coated spool and nickel-plated brass body, this valve is designed to resist mineral scale buildup and maintain a stable 70-180°F temperature range in demanding environments. As a proportional thermostatic mixing valve, it provides simultaneous control of hot and cold water supplies to ensure consistent output, even under fluctuating pressure or flow conditions. With a 3.9 Cv capacity and a minimum flow rate of 0.5 GPM, it is ideal for radiant floor heating, boiler loops, and solar thermal systems. The straight-through design simplifies piping by keeping hot and cold inlets at the same level. Note that this R-model is for heating only and is not rated for potable water use.
Key Benefits- Precise Temperature Control: Features a lockable handwheel for accurate setpoint adjustments between 70°F and 180°F.
- Anti-Scale Technology: Teflon-coated internal components prevent calcium and magnesium deposits from seizing the valve.
- Fail-Safe Performance: Designed to reduce flow within seconds if the cold water supply is interrupted.
- Versatile Installation: Union NPT connections allow for easy serviceability and element replacement without cutting pipe.
- System Stability: Maintains constant mixed water temperature despite varying inlet temperatures or hydraulic pressures.
Is the Resideo AM102R-UT-1 suitable for domestic hot water?
No, this specific model is designed for heating only applications. For potable water or domestic hot water systems where lead-free compliance is required, a different series must be used.
What is the maximum operating pressure for this valve?
This thermostatic mixing valve is rated for a maximum safe operating pressure of 150 psi (1034 kPa).
Can this valve be used as a diverting valve?
Yes, the AM-1 series mixing valve utilizes a dual-purpose design that allows it to function as either a mixing or diverting valve depending on the piping configuration.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
